How to set column visibity

Overview

In this step-by-step guide, we will explore configuring a column within the Avonni Data Table component, based on particular criteria. We’ll demonstrate how you can effectively use flow variables to define these criteria, enabling a more dynamic and tailored presentation of your data within the table according to the specific conditions or requirements you set.

Guided Steps

1

Creating your flow Variable

That will be used as a variable to show or hide a column.

As an example

Example Formula:

{!Account.Industry}='Technology'

Implementation:

Create a formula to determine if an Account's Industry field is 'Technology', and display a column in the Avonni Data Table accordingly, allowing users to view information relevant to Technology industry accounts only.

2

Configuring the Data Source

To populate the Avonni Table, a Data Collection is required. You can achieve this by establishing a 'Get Records' collection.

3

Drag the columns

Once your Data Source is configured, use it as a Data Collection to enable dragging columns derived from the 'Get Records' collection onto the Data Table.

4

Activate the Hidden variable

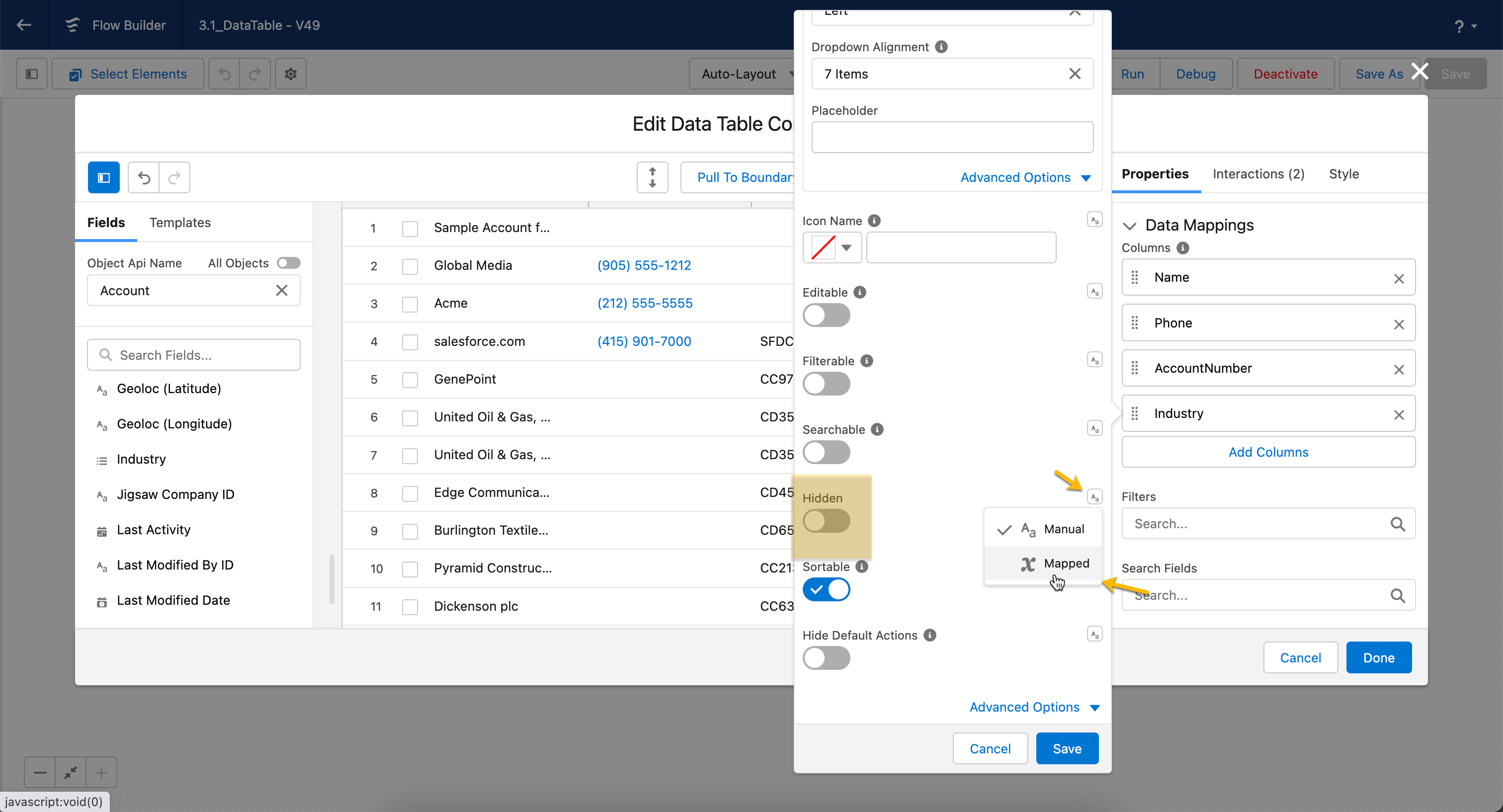

  • Open the 'Properties Panel' and go to 'Data Source selection' on the Avonni Data Table.

  • Click on the desired column.

  • Find the 'Hidden' attribute and click the formula icon.

  • Select 'Mapped'.

  • Choose your pre-created variable or formula to assign visibility. For example, if you have a variable named 'isVisible' with values true or false, select it here.
