# Navigation

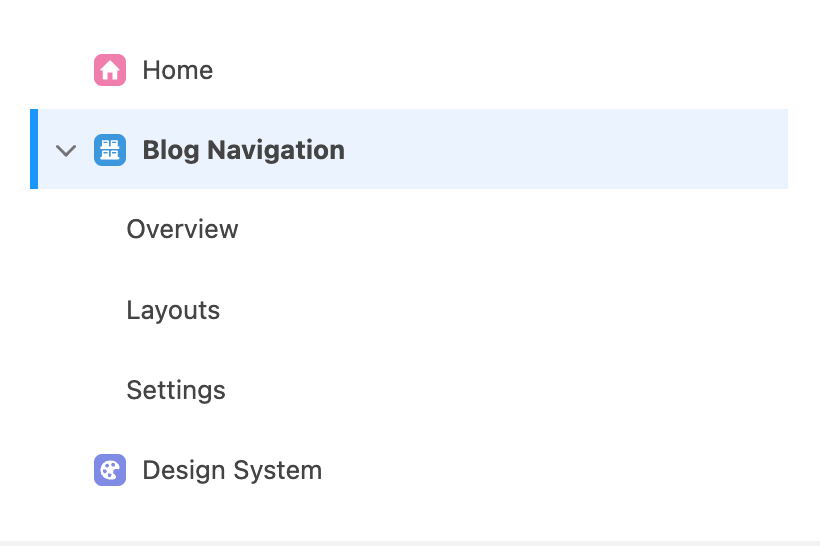

The Avonni Navigation shows a horizontal or vertical menu on a flow screen and tells the flow which item the user picked.

The Avonni Navigation shows a horizontal or vertical menu on a flow screen. The value of the item the user picks is available to the flow, so you can show the matching part of the screen or route to another screen.

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FfZ88u9eZxUZQd8jiJnWw%2Fnavigation-result.png?alt=media" alt="A horizontal navigation menu with Overview selected, then Contacts, Opportunities and Cases, the last two with a dropdown chevron"><figcaption><p>A horizontal Navigation with Overview selected.</p></figcaption></figure>

***

## Tutorials

Step-by-step builds with the Navigation, grouped on the [Navigation tutorials](https://docs.avonnicomponents.com/flow/tutorials/components/navigation.md) page.

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="files"></th><th data-hidden data-card-target data-type="content-ref"></th></tr></thead><tbody><tr><td><strong>New Navigation Item Collection</strong></td><td>Define the menu items once in a flow action and reuse them on every screen.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FNmK1zylT57lT29rzcy0X%2Fcover-new-navigation-item-collection.png?alt=media">cover-new-navigation-item-collection.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/actions/ui-and-navigation/new-navigation-item-collection.md">New Navigation Item Collection</a></td></tr><tr><td><strong>Add Sub-Menus and Columns to a Navigation Menu</strong></td><td>Group open and closed cases under one dropdown, with headings and columns.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FFLLhLQm4uIlEjAonKoiO%2Fcover-add-sub-menus-and-columns-to-a-navigation-menu.png?alt=media">cover-add-sub-menus-and-columns-to-a-navigation-menu.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/components/navigation/add-sub-menus-and-columns-to-a-navigation-menu.md">Add Sub-Menus and Columns to a Navigation Menu</a></td></tr><tr><td><strong>Build a Navigation Menu from a Picklist</strong></td><td>Turn Case Status values into a menu that follows the picklist, with counts on each item.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FcsilEus7BkBx8zm0ITM2%2Fcover-build-a-navigation-menu-from-a-picklist.png?alt=media">cover-build-a-navigation-menu-from-a-picklist.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/components/navigation/build-a-navigation-menu-from-a-picklist.md">Build a Navigation Menu from a Picklist</a></td></tr><tr><td><strong>Build Tabs on One Screen with Navigation</strong></td><td>Show an account's Overview, Contacts, Opportunities or Cases on one screen, no Next click.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FsbQFi8i17AanW6MgDfTz%2Fcover-build-tabs-on-one-screen-with-navigation.png?alt=media">cover-build-tabs-on-one-screen-with-navigation.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/components/navigation/build-tabs-on-one-screen-with-navigation.md">Build Tabs on One Screen with Navigation</a></td></tr><tr><td><strong>Reuse One Menu Across a Multi-Screen Flow</strong></td><td>One side menu on every screen, and a Decision that opens the screen the agent picks.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FZTHclcomNQaCPh66s4Zn%2Fcover-reuse-one-menu-across-a-multi-screen-flow.png?alt=media">cover-reuse-one-menu-across-a-multi-screen-flow.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/components/navigation/reuse-one-menu-across-a-multi-screen-flow.md">Reuse One Menu Across a Multi-Screen Flow</a></td></tr><tr><td><strong>Building a Navigation Menu with Related Records</strong></td><td>List an account's open opportunities as a menu and show the one the agent clicks.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2F5elu7tRfJ44kDiKqlpr8%2Fcover-building-a-navigation-menu-with-related-records.png?alt=media">cover-building-a-navigation-menu-with-related-records.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/components/navigation/building-a-navigation-menu-with-related-records.md">Building a Navigation Menu with Related Records</a></td></tr></tbody></table>

***

## Overview

A service agent opens a screen flow from an account and wants its Contacts, Opportunities and Cases one click apart. A Navigation with those four items gives the agent the menu. The flow reads **Active Navigation Item Value** and decides what to show.

The flow can use that value in three ways:

| Goal                | Flow feature                                    | Tutorial                                                                                                                                                                  |
| ------------------- | ----------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |

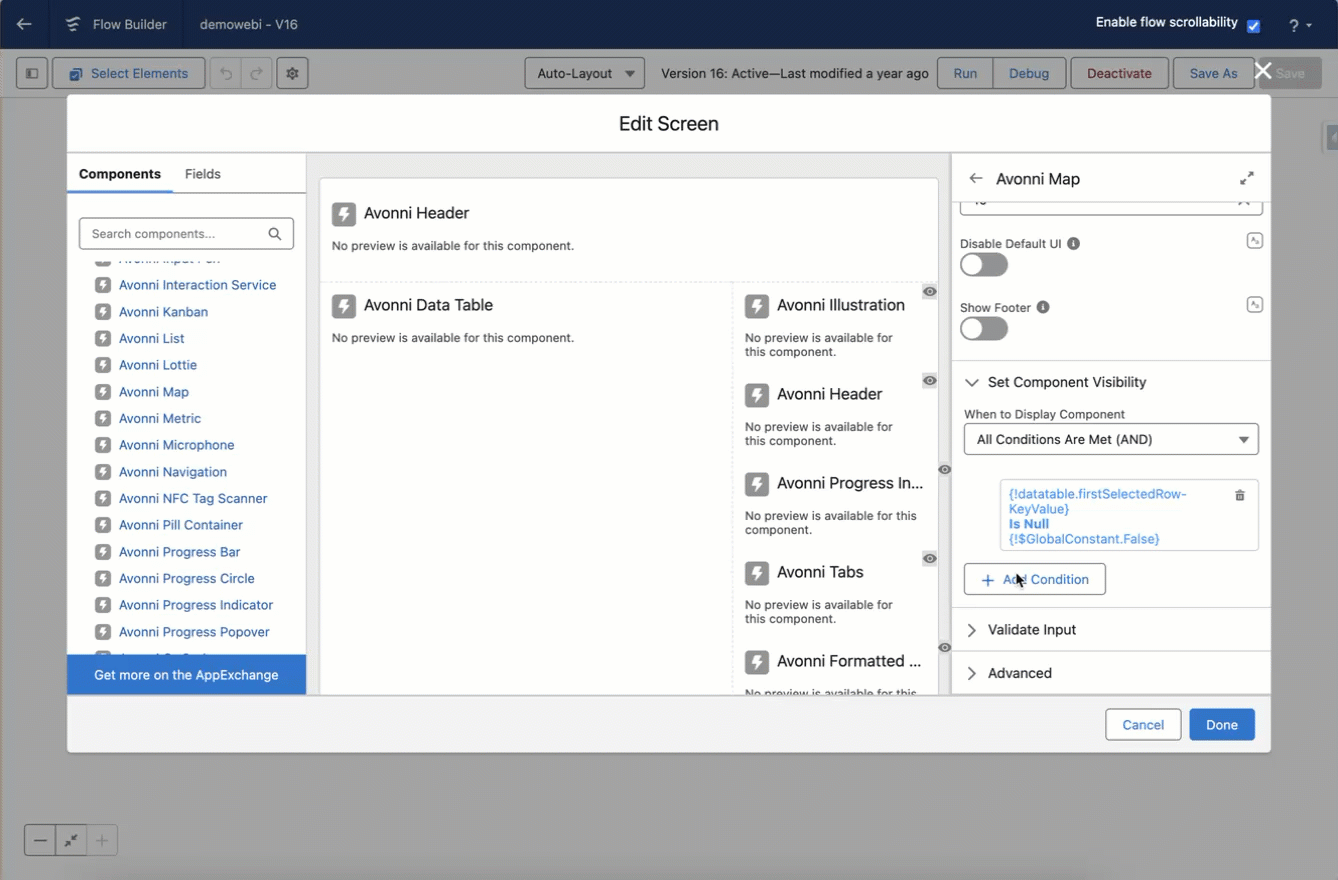

| Tabs on one screen  | **Set Component Visibility** on each section    | [Build tabs on one screen](https://docs.avonnicomponents.com/flow/tutorials/components/navigation/build-tabs-on-one-screen-with-navigation.md)                            |
| One screen per item | A **Decision** after the screen                 | [Reuse one menu across a multi-screen flow](https://docs.avonnicomponents.com/flow/tutorials/components/navigation/reuse-one-menu-across-a-multi-screen-flow.md)          |
| One item per record | **Variable** data source on a record collection | [Build a navigation menu with related records](https://docs.avonnicomponents.com/flow/tutorials/components/navigation/building-a-navigation-menu-with-related-records.md) |

## Set Up a Navigation

{% stepper %}
{% step %}

### Add the component to a screen

1. In Flow Builder, open a **Screen** element and drag **Avonni Navigation** onto it.
2. Give it an API name you will recognize in conditions, for example `AccountMenu`.
3. Click **Open Component Builder**.
   {% endstep %}

{% step %}

### Add the items

1. In the **Properties** tab, keep the **Manual** data source.
2. Under **Items**, click **Add Items** once per menu entry, then click each item and fill **Label** and **Value**, for example `Overview` / `overview`.

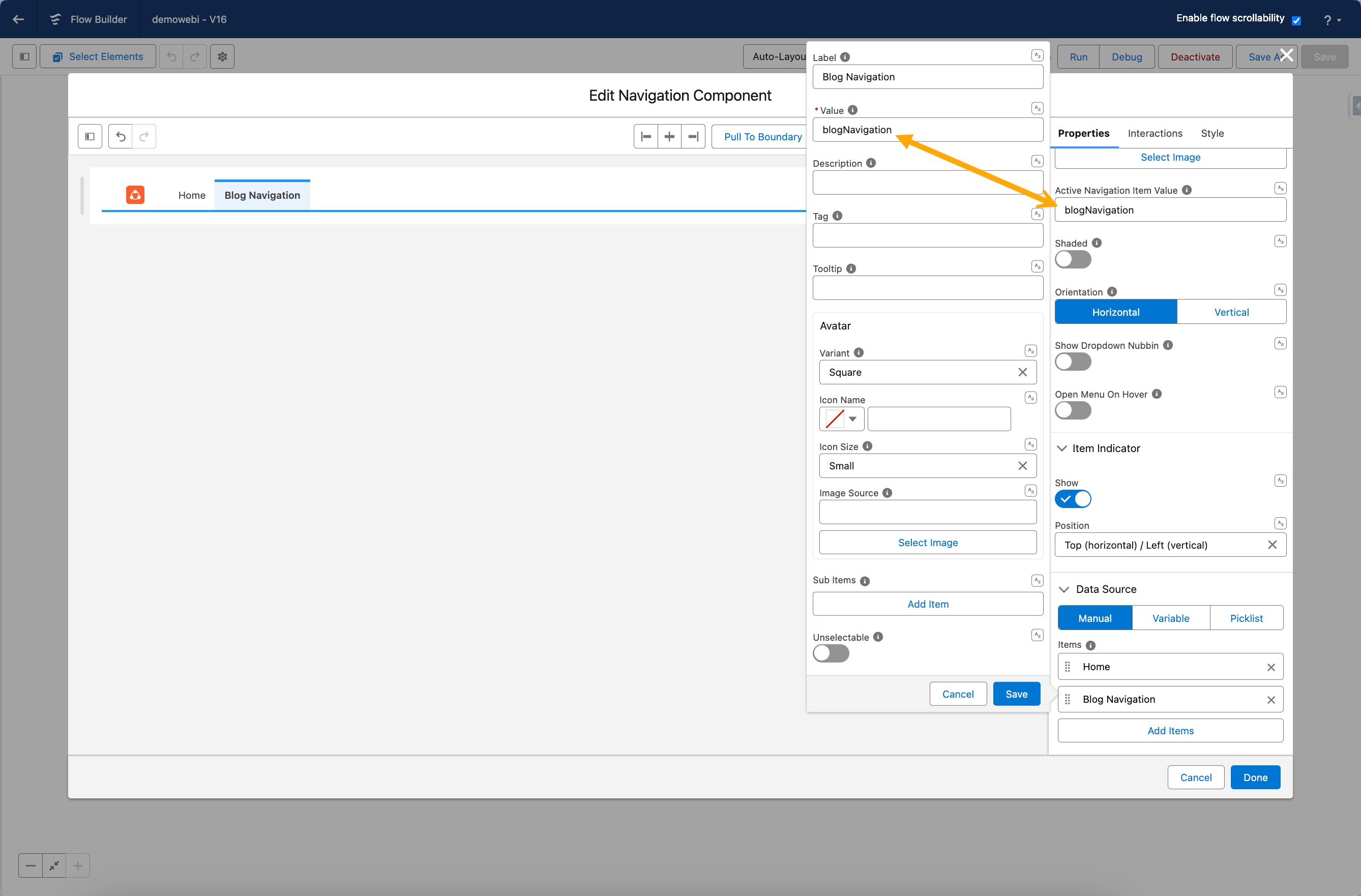

The flow compares the **Value**, never the label. Keep values short, lowercase and unique. To build the items elsewhere, see [Data Source](#data-source).

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FYFfuVkDLcbLjpVWuxABV%2Fnavigation-properties.png?alt=media" alt="The Properties tab of the Navigation with Active Navigation Item Value set to overview, Horizontal orientation, and the Manual data source with four items" width="320"><figcaption><p>Items, default item and orientation in the Properties tab.</p></figcaption></figure>
{% endstep %}

{% step %}

### Choose the layout and the default item

1. Set **Orientation**: **Horizontal** (the default) for a bar across the top, **Vertical** for a side menu.
2. Set **Active Navigation Item Value** to the value of the item to highlight when the screen opens, for example `overview`.
   {% endstep %}

{% step %}

### Use the selection in the flow

Pick `AccountMenu` > **Active Navigation Item Value** as the resource of a visibility condition, a Decision outcome or a Get Records filter. Each tutorial in the table above walks through one of these.
{% endstep %}

{% step %}

### Save and test

Click **Done**, save the flow and run it with **Debug**. The menu shows your items with the default item highlighted. Click another item: the highlight moves to it, and any section or Decision based on **Active Navigation Item Value** follows.
{% endstep %}
{% endstepper %}

## Configuration

Click the component on the Flow screen, then **Open Component Builder**. The Edit Navigation Component panel opens with three tabs: **Properties**, **Interactions** and **Style**. The sections below follow the **Properties** tab.

### Data Source

| Data Source                                                                                       | Where the items come from                                                                                                                                                                                        | Use it when                                                                                                                                                                                                                |
| ------------------------------------------------------------------------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| [**Manual**](https://docs.avonnicomponents.com/flow/component-builder/data-sources/manual.md)     | Items you type in the panel                                                                                                                                                                                      | The menu is fixed, such as Overview, Contacts, Opportunities, Cases                                                                                                                                                        |
| [**Variable**](https://docs.avonnicomponents.com/flow/component-builder/data-sources/variable.md) | A flow collection: a record collection, or a collection built by the [New Navigation Item Collection](https://docs.avonnicomponents.com/flow/actions/ui-and-navigation/new-navigation-item-collection.md) action | One item per record, or one menu shared by several screens                                                                                                                                                                 |
| [**Picklist**](https://docs.avonnicomponents.com/flow/component-builder/data-sources/picklist.md) | The values of a picklist field                                                                                                                                                                                   | The menu must follow a picklist, such as Case **Status**. See [Build a navigation menu from a picklist](https://docs.avonnicomponents.com/flow/tutorials/components/navigation/build-a-navigation-menu-from-a-picklist.md) |

### Items

With **Manual**, each item has these settings.

| Setting          | What it does                                                                                                                                                                                                                                                                                 |
| ---------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **Label**        | The text shown on the item.                                                                                                                                                                                                                                                                  |
| **Value**        | Required. A unique value for the item. This is what **Active Navigation Item Value** returns.                                                                                                                                                                                                |
| **Description**  | Text under the label. Shown in vertical orientation. In horizontal orientation, shown only for sub items that are not a column or tab name.                                                                                                                                                  |
| **Tag**          | A small badge to the right of the label, for example a count. **Tag Attributes** set its **Background Color**, **Text Color**, **Variant** (Base, Brand, Inverse, Alt-Inverse, Success, Info, Warning, Error, Offline), **Outline** and **Hide Text** (shows the badge as a colored circle). |
| **Tooltip**      | Text shown when the mouse moves over the item.                                                                                                                                                                                                                                               |
| **Avatar**       | An icon or image before the label: **Variant** (Circle, Square), **Icon Name**, **Icon Size**, **Image Source**.                                                                                                                                                                             |

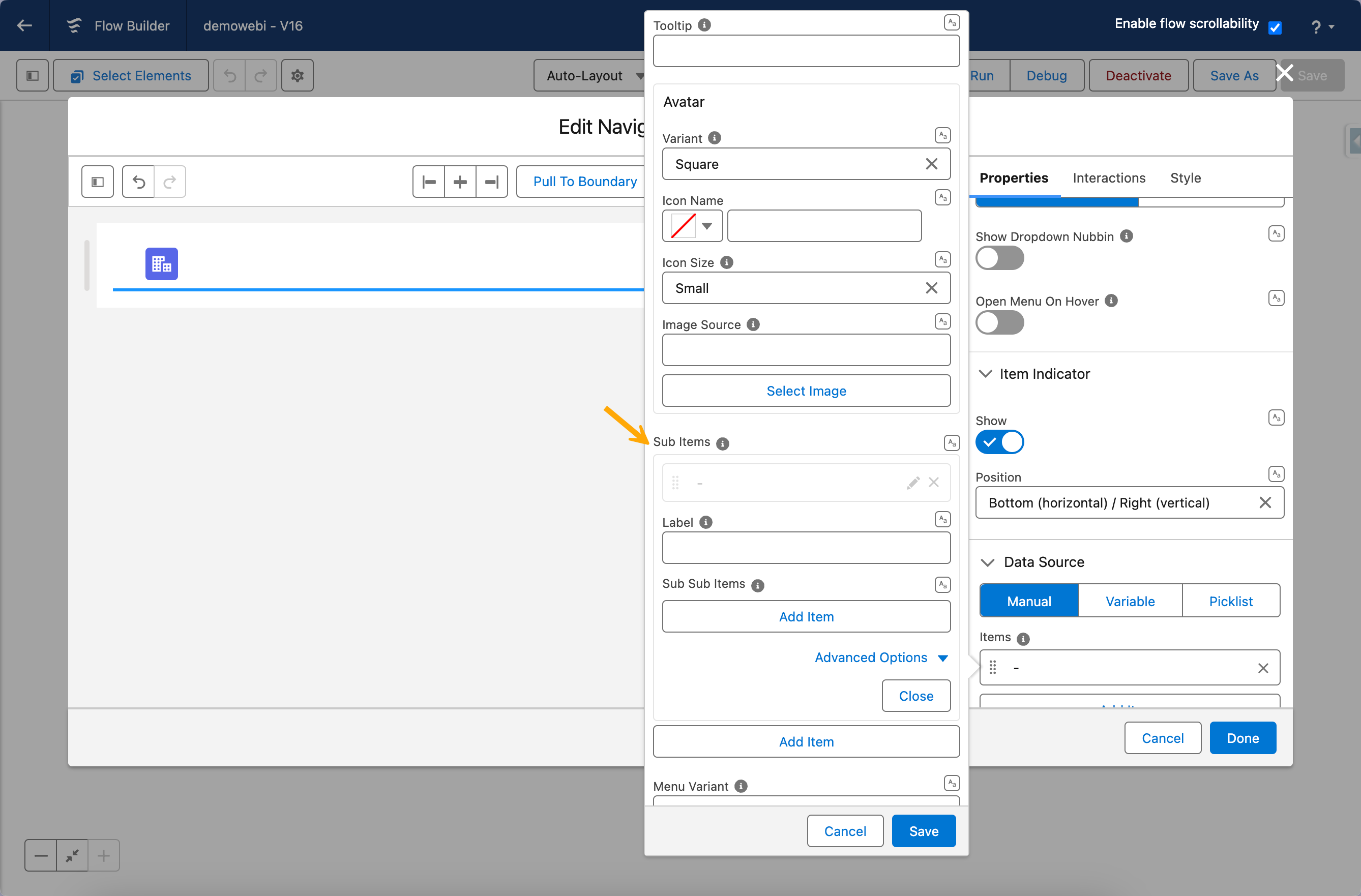

| **Sub Items**    | Items shown in a dropdown under this item. Each sub item can hold **Sub Sub Items**, a third level.                                                                                                                                                                                          |
| **Menu Variant** | How the sub items menu looks: **Base** (a dropdown list), **Columns** or **Tabs**. Requires **Sub Items**. Applies to horizontal orientation.                                                                                                                                                |
| **Unselectable** | The item cannot be selected, only its sub items can. Use it for a heading such as Cases.                                                                                                                                                                                                     |
| **Hide Chevron** | Removes the chevron. A click anywhere on the item opens its sub items. Requires **Sub Items**.                                                                                                                                                                                               |

[Add sub-menus and columns to a navigation menu](https://docs.avonnicomponents.com/flow/tutorials/components/navigation/add-sub-menus-and-columns-to-a-navigation-menu.md) shows **Sub Items**, **Menu Variant**, **Unselectable** and **Hide Chevron** together.

### Data Mapping

With **Variable** and a record collection, **Data Mappings** tells the component which field fills each part of an item: **Label**, **Value**, **Description** (vertical orientation only), **Tag** and **Tag Attributes**, **Tooltip**, **Icon Name**, **Icon Size** (Xxs, Xs, Small, Medium, Large; default Small), **Sub Items**, **Menu Variant**, **Unselectable** and **Hide Chevron**. **Color**, **Disabled** and **Hidden** are under [Advanced Options](#advanced-options).

Map **Value** to a unique field. The record Id is the safest choice.

A collection from the New Navigation Item Collection action already holds labels and values, so it needs no mapping.

### Picklist

With **Picklist**, pick the object in **Object API Name**, then:

| Setting               | What it does                                                                                                 |
| --------------------- | ------------------------------------------------------------------------------------------------------------ |
| **Picklist Field**    | The field whose values become the items.                                                                     |
| **Record Type**       | Shows only the values available for one record type. Appears when the object has record types.               |
| **Picklist Value**    | Shows only the values you select. Leave it empty to show them all.                                           |
| **Controlling Value** | For a dependent picklist, the controlling value that filters the items. Appears when the field is dependent. |
| **Sort Order**        | **Ascending**, **Descending** or **Default Order of Field**.                                                 |

Each item takes the picklist label as its label and the picklist API value as its value. Picklist items have no tag, sub items or disabled state.

### Properties

| Setting                          | What it does                                                                                            |
| -------------------------------- | ------------------------------------------------------------------------------------------------------- |
| **Active Navigation Item Value** | The value of the item selected when the screen opens. It must match a **Value** exactly, case included. |
| **Shaded**                       | Gives the items a shaded background.                                                                    |
| **Orientation**                  | **Horizontal** (default) or **Vertical**.                                                               |
| **Compact**                      | Reduces the spacing between items. Requires **Orientation** = Vertical.                                 |
| **Show Dropdown Nubbin**         | Shows the small arrow on the sub items menu. Requires **Orientation** = Horizontal.                     |
| **Open Menu On Hover**           | Opens the sub items menu when the mouse moves over the item. Requires **Orientation** = Horizontal.     |

### Title

| Setting          | What it does                                    |
| ---------------- | ----------------------------------------------- |
| **Title**        | Text shown with the menu.                       |
| **Icon Name**    | An icon next to the title.                      |
| **Icon Size**    | Size of the title icon. Requires **Icon Name**. |
| **Image Source** | An image shown in the title area.               |

### Item Indicator

| Setting      | What it does                                                                                                           |
| ------------ | ---------------------------------------------------------------------------------------------------------------------- |
| **Show**     | Shows the bar that marks the selected item. On by default.                                                             |
| **Position** | **Top (horizontal) / Left (vertical)** or **Bottom (horizontal) / Right (vertical)**. Requires **Show** to be enabled. |

### Advanced Options

Each item, sub item and sub sub item has three more settings under **Advanced Options**.

| Setting      | What it does                                  |
| ------------ | --------------------------------------------- |
| **Color**    | Shows a colored circle next to the label.     |
| **Disabled** | The item is grayed out and cannot be clicked. |
| **Hidden**   | The item is not displayed.                    |

**Disabled** and **Hidden** accept a Boolean resource, so a formula can switch them per run. Example: hide Cases for a user who has no access to them.

## Interactions

[Interactions](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel.md) define what happens when users interact with the Navigation. Configure them from the **Interactions** tab of the Edit Navigation Component panel.

### Select

Fires when the user selects an item. **Target Name** lists the values of your items:

* Leave it empty and the interaction runs for every item.
* Pick a value and it runs only when that item is selected.

The selected value is available inside the interaction as **Navigation Item Value**. To move to another screen on click, add a [Flow Navigation](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/flow-navigation.md) interaction.

## Styling

The **Style** tab groups its settings in sections. **Sub Item** and **Sub Item Label** appear in horizontal orientation only.

{% tabs %}
{% tab title="Margin" %}
Space around the component: **Top**, **Right**, **Bottom**, **Left**.
{% endtab %}

{% tab title="Padding" %}
Space inside the component: **Top**, **Right**, **Bottom**, **Left**.
{% endtab %}

{% tab title="Size" %}
**Width** and **Height** of the component.
{% endtab %}

{% tab title="Border" %}
Border around the component: color, size, style and radius.
{% endtab %}

{% tab title="Background" %}
**Color**, and the item background in each state: **Background Color Active**, **Background Color Hover**, **Background Color Disabled**.
{% endtab %}

{% tab title="Bottom Border" %}
**Color** and **Size** of the line under a horizontal menu.
{% endtab %}

{% tab title="Title" %}
**Text Color**, **Font Size**, **Font Weight**, **Font Family**, **Text Shadow**.
{% endtab %}

{% tab title="Title Image" %}
**Object Fit**, **Height**, **Width**.
{% endtab %}

{% tab title="Item" %}
**Width**, **Min Width**, **Max Width** of each item.
{% endtab %}

{% tab title="Item Label" %}
**Text Color**, **Font Size**, **Font Weight**, **Font Family**, **Text Shadow**, each also in an Active, Hover and Disabled version (for example **Text Color Active**).
{% endtab %}

{% tab title="Item Description" %}
**Text Color**, **Font Size**, **Font Weight**, **Font Family**, **Text Shadow**.
{% endtab %}

{% tab title="Item Indicator" %}
**Color Active**, **Size Active**, **Color Hover**, **Size Hover**.
{% endtab %}

{% tab title="Item Border" %}
**Color**, **Size**, **Color Active**, **Size Active**.
{% endtab %}

{% tab title="Menu" %}
Size of the sub items menu: **Width**, **Min Width**, **Max Width**, **Height**, **Min Height**, **Max Height**, **Column Width**, **Spacing Block**, **Spacing Inline**.
{% endtab %}

{% tab title="Menu Border" %}
**Color**, **Size**, **Style**, **Radius**.
{% endtab %}

{% tab title="Menu Icon" %}
**Color**, **Color Active**, **Color Hover**.
{% endtab %}

{% tab title="Menu Group Label" %}
**Text Color**, **Font Size**, **Font Weight**, **Font Family**, **Text Shadow**.
{% endtab %}

{% tab title="Menu Column Label" %}
Column headings of a **Columns** menu: **Text Color**, **Font Size**, **Font Weight**, **Font Family**, **Text Shadow**.
{% endtab %}

{% tab title="Sub Item" %}
**Background Color Selected**, **Background Color Disabled**, **Spacing Block**, **Spacing Inline**.
{% endtab %}

{% tab title="Sub Item Label" %}
**Text Color**, **Text Color Hover**, **Text Color Disabled**, **Font Size**, **Font Weight**, **Font Family**, **Text Shadow**.
{% endtab %}
{% endtabs %}

## Output Variables

After the screen, select the Navigation in any resource picker (for example `AccountMenu`) and pick the output you need.

### Item Selection

| Output variable                    | Type   | What it returns                                                                                                           |
| ---------------------------------- | ------ | ------------------------------------------------------------------------------------------------------------------------- |
| **Active Navigation Item Value**   | Text   | The **Value** of the selected item. Before any click, the value set in **Active Navigation Item Value**, or empty.        |
| **Active Navigation Item SObject** | Record | The record behind the selected item. Filled only when the items come from a record collection (**Variable** data source). |

> **Example:** A menu lists the open opportunities of an account. After the screen, an **Update Records** element uses **Active Navigation Item SObject** to update the opportunity the agent picked, with no second Get Records.

### Others

| Output variable     | Type    | What it returns                  |
| ------------------- | ------- | -------------------------------- |
| **Number of Items** | Integer | The number of items in the menu. |

### Flow Interaction Output Variables

An [Open Flow Dialog](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/open-flow-dialog.md) or [Open Flow Panel](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/open-flow-panel.md) interaction can return values from the flow it launches. See [Flow Interaction Output Variables](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/flow-interaction-output-variables.md).

## Troubleshooting Common Issues

* **No item is highlighted when the screen opens.** **Active Navigation Item Value** is empty, or it does not match a **Value** exactly. `Cases` and `cases` are different values.
* **A section never appears.** Its visibility condition compares the label. Compare **Active Navigation Item Value** with the item **Value**.
* **The menu is empty with the Variable data source.** The collection is empty at this screen, or, for a record collection, **Data Mappings** has no **Label** and **Value**. Check that the Get Records runs before the screen.
* **Clicking an item with sub items does not open them.** The item is selectable, so a click on the label selects it. Click the chevron, or turn on **Unselectable** or **Hide Chevron** on that item.
* **Columns or Tabs show nothing.** In those variants each sub item is a column or tab name, and a sub item with no **Sub Sub Items** is skipped.
* **A Select interaction runs for the wrong item.** Its **Target Name** is empty (it runs for every item) or set to another value.


---
