# Creating Row Actions

Add a row menu, buttons and links to a screen flow Data Table, then open another flow, a record or the next screen with the row the user clicked.

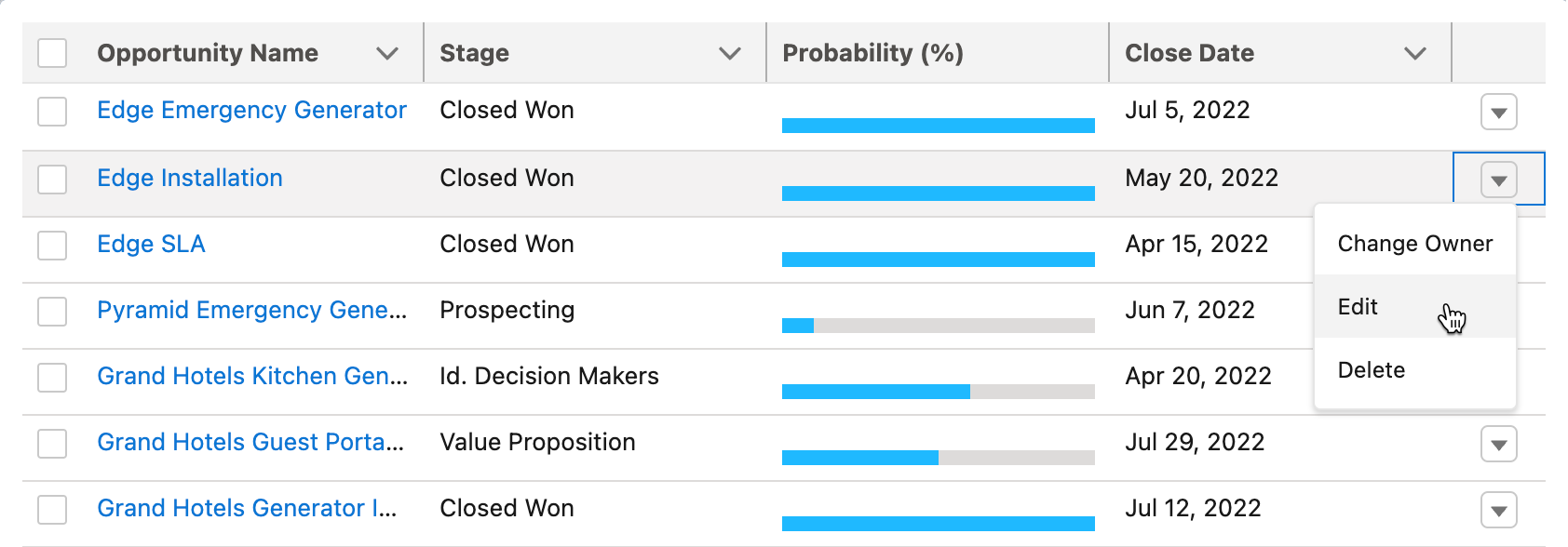

A sales manager reviews the open opportunities of her team on a flow screen. On each row she wants a small menu: **Change Owner** opens a second flow on that deal, **Close as Lost** sends the flow to the next screen with the deal she picked. When one action matters on every row, it gets its own button instead, like a **Reassign** button at the end of each line. Both kinds fire the same **Row Action** interaction.

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2Fa2CFE2yFmeMjjihvXpLU%2Fdata-table-tutorial-creating-row-actions-result.png?alt=media" alt="Data Table of opportunities with the row action menu open on one row, showing Change Owner and Close as Lost"><figcaption><p>Each row gets a menu of actions, here Change Owner and Close as Lost.</p></figcaption></figure>

## Before you start

* A screen flow with the Avonni [Data Table](https://docs.avonnicomponents.com/flow/flow-components/data-table.md) on a screen, showing Opportunities. [Learn the Basics](https://docs.avonnicomponents.com/flow/tutorials/components/data-table/learn-the-basics.md) covers that setup.
* If an action opens another flow, that flow exists and is active, with a Text input variable for the record Id (for example `recordId`, **Available for input** checked).
* To refresh the table after that flow ends, the Data Table uses the **Query** data source.

## Add a row menu

{% stepper %}
{% step %}

### Add an Action column

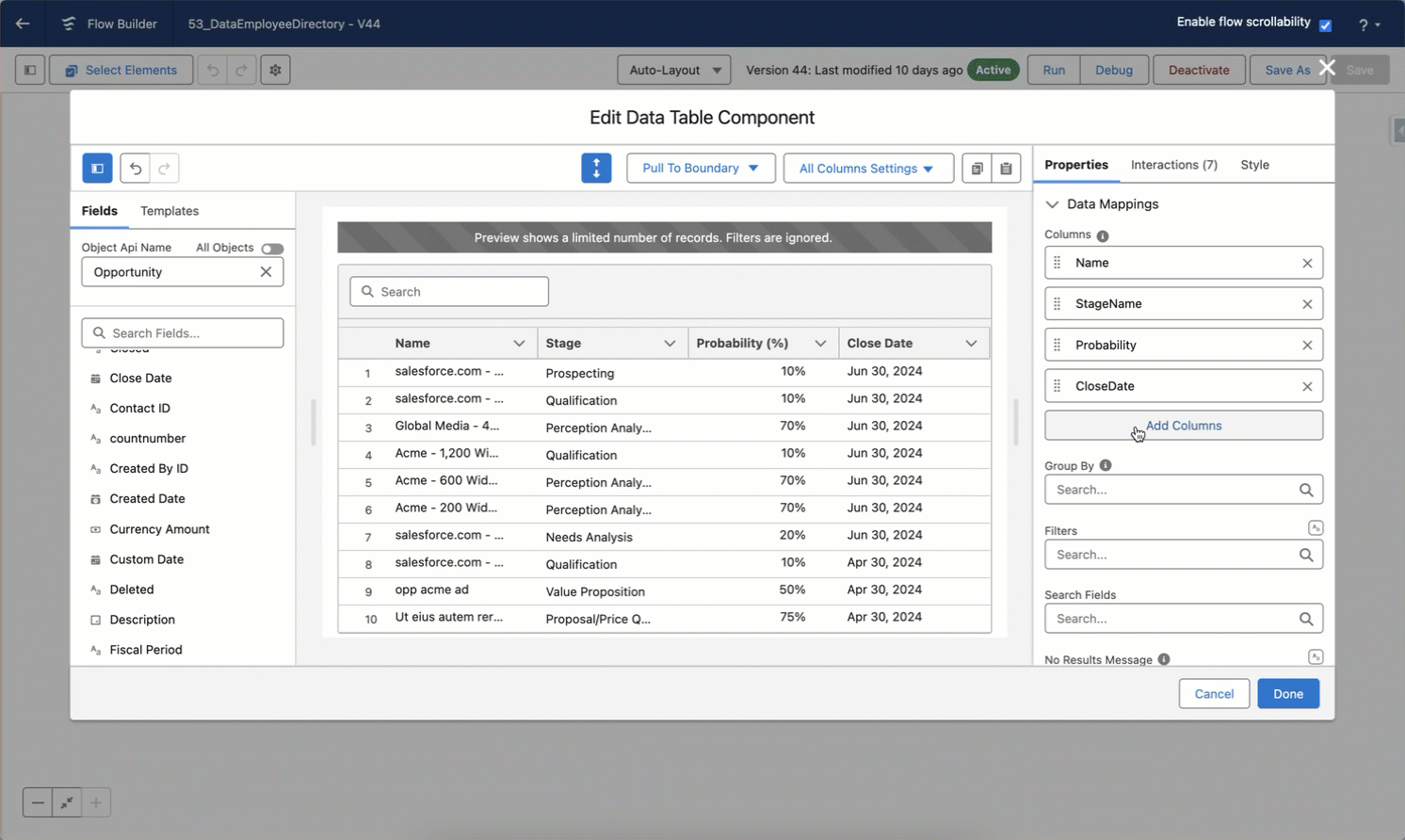

1. Select the Data Table on the screen and click **Open Component Builder**.
2. In the **Properties** tab, under **Data Mappings** > **Columns**, add a column and choose **Custom** instead of **Object Field**.
3. Name it `Actions` and set **Type** to **Action**.

The Action column has no field behind it: it only holds the menu. It is narrow, so keep its label short or hide it.
{% endstep %}

{% step %}

### Declare the actions of the menu

In the column's **Type Attributes**, under **Row Actions**, add one entry per menu item:

* **Label**: what the user reads, for example `Change Owner`.
* **Name**: the identifier the interactions and the flow use. It fills in from the Label; change it to something short without spaces, for example `change_owner`.
* **Disabled** and **Hidden** are optional per entry, and can read a checkbox field of the row instead of a fixed value.

Add a second entry, `Close as Lost` with the name `close_lost`. **Menu Alignment** sets where the menu opens (**Auto** by default).

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2Ff3EpuLD9aLEtQ1jClTd0%2Fdata-table-tutorial-creating-row-actions-type-attributes.png?alt=media" alt="Type Attributes of the Actions column with Type set to Action and two row actions listed" width="320"><figcaption><p>Type Attributes of the Actions column: the type and the items of the menu.</p></figcaption></figure>
{% endstep %}

{% step %}

### Open another flow from an action

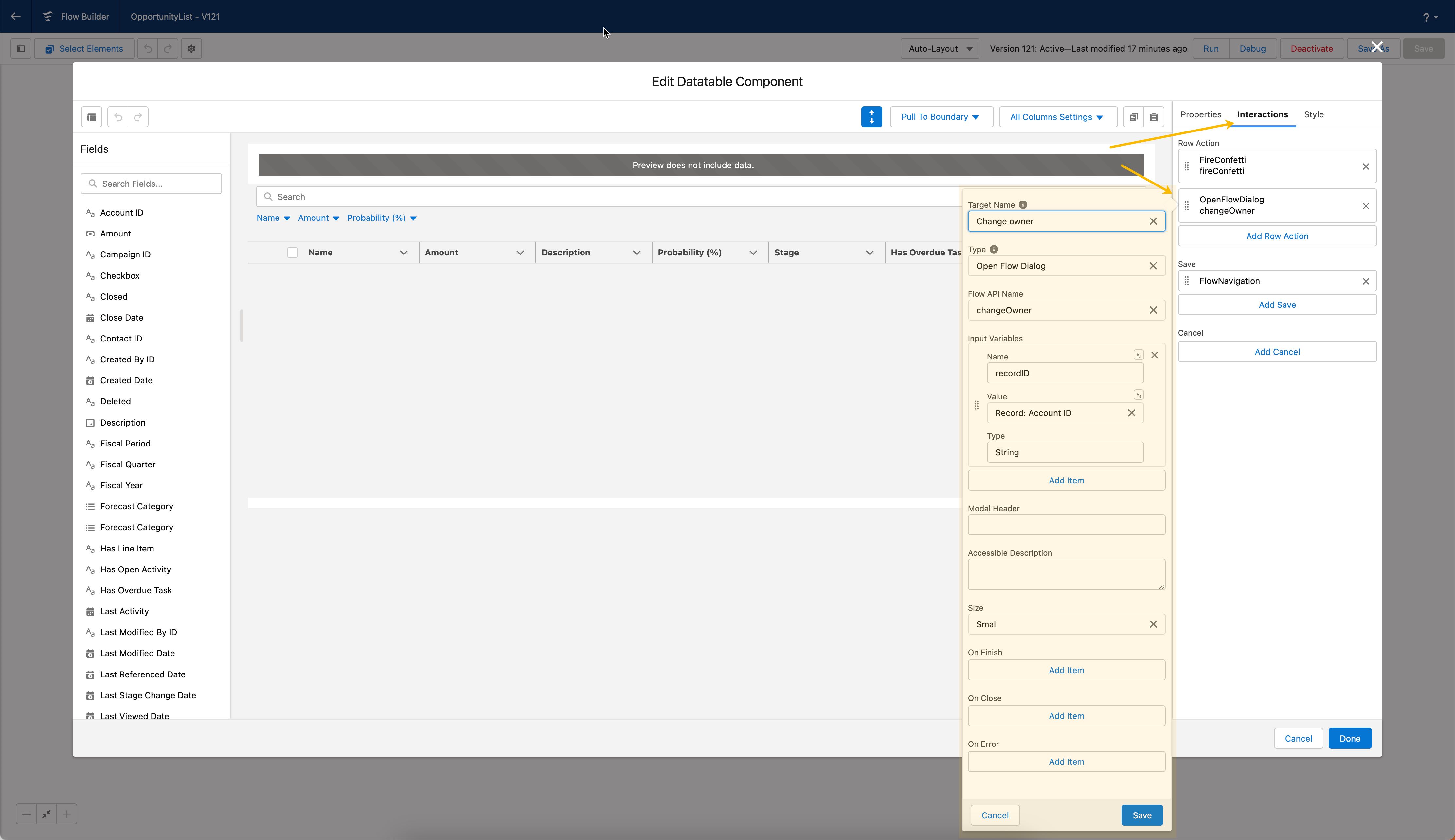

1. Go to the **Interactions** tab and add a **Row Action** interaction.
2. In **Target Name**, pick `Change Owner`. The list shows every row action, button and button icon of the table.
3. Set **Type** to **Open Flow Dialog** and pick the flow in **API Name**. The list shows flow labels, not API names.
4. Under **Input Variables**, add an item: **Name** lists the input variables of that flow, pick `recordId`. In **Value**, pick the row's Id field, for example **Record: Id**. Set **Type** to **Text**.
5. Under **On Finish**, add **Refresh Query** so the row shows the new owner when the dialog closes.

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FKM5PYd67J9F7tcMd0oes%2Fdata-table-tutorial-creating-row-actions-interaction.png?alt=media" alt="Row Action interaction opening a flow dialog with the clicked opportunity Id and a Refresh Query on finish" width="320"><figcaption><p>The Change Owner action opens a second flow on the clicked opportunity, then refreshes the table.</p></figcaption></figure>

{% hint style="info" %}
**Value** offers the fields of the row the user clicked (the **Record: ...** entries). Do not map **First Selected Row** here: it follows the checkboxes, not the row whose menu was opened.
{% endhint %}
{% endstep %}

{% step %}

### Or hand the clicked row to the rest of the flow

Some changes belong in the flow itself, with your own checks. For `Close as Lost`:

1. Add a second **Row Action** interaction, **Target Name** `Close as Lost`, **Type** **Flow Navigation**, then **Next Screen**.
2. After the screen, add a **Decision** that checks the Data Table output **Clicked Row Action Name** equals `close_lost`.
3. On that path, an **Update Records** element filters on **Id** equals **Clicked Row Action Key Field Value** and sets **Stage** to `Closed Lost`. **Clicked Row Action Row** gives the whole record when you need more fields.
4. Connect the path back to the screen (or to the Get Records with a **Variable** source) so the manager lands on a fresh table.

The same outputs are filled for every row action, so one Decision can route several actions.
{% endstep %}

{% step %}

### Save and test

Click **Done**, save the flow and run it with **Debug**. Each row shows a menu button at the end. **Change Owner** opens the second flow in a dialog on that opportunity, and the row updates when the dialog finishes. **Close as Lost** moves to the next screen, and the Decision takes the `close_lost` path.
{% endstep %}
{% endstepper %}

## Add a button or a link in a column

A menu hides its actions behind a click. When one action is the obvious next step, show it on the row.

| You want                                                | Column type                                 | Fires an interaction         |
| ------------------------------------------------------- | ------------------------------------------- | ---------------------------- |
| A labeled button on each row (`Reassign`, `Log a Call`) | **Button**                                  | Yes, through **Row Action**  |
| A compact icon on each row (a pencil, a phone)          | **Button Icon**                             | Yes, through **Row Action**  |
| A button that reads like a link                         | **Button** with **Variant** set to **Base** | Yes, through **Row Action**  |
| A plain link to a web page or to a record               | **Url**                                     | No, the link opens by itself |

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2F1L0YPJ2QNlhl53voTjIW%2Fdata-table-tutorial-creating-row-actions-buttons.png?alt=media" alt="Data Table where each opportunity name looks like a link and each row has a blue Reassign button"><figcaption><p>A Base button that reads like a link, and a Brand Reassign button on every row.</p></figcaption></figure>

{% stepper %}
{% step %}

### Add the button column

1. In **Data Mappings** > **Columns**, add a **Custom** column, for example `Reassign`, and set **Type** to **Button** (or **Button Icon**).
2. In **Type Attributes**, fill **Label** (`Reassign`). The Label can also be a field of the row: pick the opportunity name and set **Variant** to **Base**, and each name reads like a link.
3. Fill **Name** (`reassign`). Unlike a menu entry, a button's Name does not fill in by itself, and without it the button never shows up in **Target Name**.
4. Optional: **Variant** **Brand** for a filled blue button, and an **Icon Name**.
   {% endstep %}

{% step %}

### Wire it

In the **Interactions** tab, add a **Row Action** interaction and pick the button in **Target Name**, where it is listed by its label. Then choose the **Type**, exactly as for a menu entry: **Open Flow Dialog** with `recordId` mapped to **Record: Id**, **Flow Navigation** to the next screen, or **Navigate** to open a page.
{% endstep %}

{% step %}

### Or use a plain link

When the click only needs to open a page, skip the interaction. Use a column whose field holds a web address or a record Id (the opportunity Id, or a lookup such as the account):

* Set **Type** to **Url**.
* For a record Id, turn on **Record Link**: the Id becomes a link to that record.
* **Label** sets the text shown instead of the raw value, **Target** where the page opens, **Tooltip** the hover text.

To link the record name itself, use **Linkify** on the name column instead ([Displaying record name field as a link](https://docs.avonnicomponents.com/flow/tutorials/components/data-table/displaying-record-name-field-as-a-link.md)).
{% endstep %}
{% endstepper %}

## What a row action can do

| Type                                                                                                                                                                                                                                                                                    | What happens on the clicked row                                                                  | Data source       |
| --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------ | ----------------- |
| [**Open Flow Dialog**](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/open-flow-dialog.md) / [**Open Flow Panel**](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/open-flow-panel.md)                                         | Runs another screen flow in a modal or a side panel, with the row's values as input variables    | Any               |
| [**Navigate**](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/navigate.md)                                                                                                                                                                                 | Opens a record page, a list or a URL. This leaves the flow unless the page opens in a new window | Any               |
| [**Edit Selected Record(s)**](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/edit-selected-records.md)                                                                                                                                                     | Opens an edit dialog for the clicked row; with a Query source the table reloads after the save   | Query or Variable |
| [**Delete Selected Record(s)**](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/delete-selected-records.md) / [**Duplicate Selected Record(s)**](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/duplicate-selected-records.md) | Deletes or copies the clicked record                                                             | Query or Variable |
| [**Refresh Query**](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/refresh-query.md)                                                                                                                                                                       | Reloads the table's own query                                                                    | Query             |
| [**Flow Navigation**](https://docs.avonnicomponents.com/flow/component-builder/interactions-panel/flow-navigation.md)                                                                                                                                                                   | Moves the flow to the next screen, back, pause or finish                                         | Any               |

You can stack several interactions on the same **Target Name**. They run in the order you list them.

## Troubleshooting

<details>

<summary>The action or the button is missing from Target Name</summary>

**Target Name** lists menu entries, **Button** columns and **Button Icon** columns that have a **Name**. A button's Name stays empty until you fill it. A **Checkbox Button** column is never a target.

</details>

<details>

<summary>The second flow opens but receives no record</summary>

Check three things: the input variable of the target flow is marked **Available for input**, its data type matches the **Type** you set in the interaction (**Text** for an Id), and **Value** is a **Record: ...** entry, not a selection output.

</details>

<details>

<summary>Edit, Delete or Refresh Query is not in the list of types</summary>

The record operations need a **Query** or **Variable** data source, and **Refresh Query** needs **Query**. With a **Variable** source, loop the flow back through its Get Records to show new values ([Enabling auto-refresh](https://docs.avonnicomponents.com/flow/tutorials/components/data-table/tips-and-tricks/enabling-auto-refresh-on-the-data-table-when-pressing-a-button.md)).

</details>

<details>

<summary>The user lands on a record page and the flow is gone</summary>

**Navigate** leaves the flow. Open the record work in a dialog with **Open Flow Dialog**, use **Flow Navigation**, or open the page in a new window.

</details>
