# How to pass your current RecordID in your screen flow

## Overview

Salesforce hands the record Id to your flow through an input variable named `recordId`. You create that variable once, then pick how the user reaches the flow:

Prefer to watch? Browse the [video tutorials](https://docs.avonnicomponents.com/videos), or see every [Flow Screen Component](https://docs.avonnicomponents.com/flow/flow-components/explore-all-flow-screen-components).

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2Fwr2hPMJQCF1OWmkja4gK%2Frecordid-how-to-pass-your-current-recordid-in-your-screen-flow-result.png?alt=media" alt="A screen flow running on the Salesforce Account record page of Bluewater Logistics: it receives the recordId and lists the Account&#x27;s three open Cases in an Avonni Data Table"><figcaption><p>The flow knows which Account it is on: the table shows only its open Cases.</p></figcaption></figure>

| The user...                                       | Use                                                                                                                           | Salesforce fills `recordId` when                                         |
| ------------------------------------------------- | ----------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------ |
| Sees the flow inside the page, next to the record | The **Flow** component on the **Record Page** ([Setting Up Your Flow and App Builder](#setting-up-your-flow-and-app-builder)) | You check **Pass record ID into this variable** in Lightning App Builder |
| Clicks a button that opens the flow in a window   | A **Quick Action** ([Configuring a Quick Action](#configuring-a-quick-action-to-pass-the-record-id-to-a-flow))                | Always, if the variable is named exactly `recordId`                      |

Once the flow has the Id, it can load the record with a Get Records element, and the Avonni components on its screens can filter on it.

{% hint style="info" %}

#### Salesforce Flow Screen Components guide

New to building Screen Flows? Our [Salesforce Flow Screen Components guide (2026)](https://www.avonni.app/blog-posts/salesforce-flow-screen-components-guide-2026) covers the screen components you can use once your flow knows which record it is working on.
{% endhint %}

***

## Setting Up Your Flow and App Builder

Use this when the flow lives on the page itself, for example a panel of the Account's open Cases that the agent works through without leaving the record.

### Step 1: Create a `recordId` Variable in Your Flow

{% stepper %}
{% step %}

#### Open your screen flow

In **Setup**, search for **Flows** and open the screen flow, or click **New Flow** and choose **Screen Flow**.
{% endstep %}

{% step %}

#### Create the variable

In the **Toolbox**, click **New Resource** and fill in:

* **Resource Type**: Variable
* **API Name**: `recordId`
* **Data Type**: Text
* **Available for input**: checked

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FKVI10eYReqZaDNwnkdJu%2Frecordid-how-to-pass-your-current-recordid-in-your-screen-flow-new-resource.png?alt=media" alt="Flow Builder New Resource dialog creating a Text variable named recordId with Available for input checked, for a screen flow" width="375"><figcaption><p>The recordId variable: Text, Available for input.</p></figcaption></figure>

Type `recordId` exactly: a lowercase `r` and a capital `I`. A Quick Action only fills a variable with that exact name, and keeping the same name everywhere means one flow works from both launch points.
{% endstep %}

{% step %}

#### Save and activate the flow

Click **Done**, then **Save** and **Activate**. Lightning App Builder only lists active screen flows.
{% endstep %}
{% endstepper %}

### Step 2: Add the Flow to Your Record Page and Pass the Record ID

{% stepper %}
{% step %}

#### Open the Record Page in Lightning App Builder

Open any record of the object (an Account, for example), click the **Setup** gear and choose **Edit Page**. You can also go through **Setup**, **Lightning App Builder**, and **Edit** on the page.
{% endstep %}

{% step %}

#### Add the Flow component

Drag the standard **Flow** component onto the page, then choose your flow in the **Flow** field of its properties panel.
{% endstep %}

{% step %}

#### Check Pass record ID into this variable

The properties panel lists every input variable of the flow. Next to `recordId`, check **Pass record ID into this variable**. This is the setting that sends the page's record Id into the flow.

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FgNBiNG0Vj17PyJ6jsTUI%2Frecordid-how-to-pass-your-current-recordid-in-your-screen-flow-app-builder-checkbox.png?alt=media" alt="Lightning App Builder Flow component properties: the screen flow Open Cases selected, and Pass record ID into this variable checked for the recordId input variable" width="375"><figcaption><p>The checkbox that sends the page's record Id into recordId.</p></figcaption></figure>
{% endstep %}

{% step %}

#### Save and activate the page

Click **Save**. If the page is not assigned yet, click **Activation** and assign it as the org default, or to the apps and profiles that should see it.
{% endstep %}
{% endstepper %}

***

## Configuring a Quick Action to Pass the Record ID to a Flow

Use this when the flow should start on demand, from a button such as **Log a Visit** on the Account. A Flow-type Quick Action fills `recordId` by itself: there is nothing to map.

### Step 1: Create a `recordId` Variable in Your Flow (if you don't have it already)

Create the variable as in [Step 1 above](#step-1-create-a-recordid-variable-in-your-flow). For a Quick Action the name is a requirement: a Text variable named exactly `recordId`, with **Available for input** checked. Then save and activate the flow.

### Step 2: Create and Configure the Quick Action

{% stepper %}
{% step %}

#### Open the object's actions

In **Setup**, open **Object Manager**, select the object (Account, Contact, Case...) and click **Buttons, Links, and Actions**, then **New Action**.
{% endstep %}

{% step %}

#### Fill in the action

* **Action Type**: Flow
* **Flow**: your screen flow, listed by its label (only active screen flows are listed)
* **Label**: what users see on the button, for example `Log a Visit`
* **Name**: filled in from the label

<figure><img src="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FhIbKvEIqQnvf0LQAMQJM%2Frecordid-how-to-pass-your-current-recordid-in-your-screen-flow-quick-action-form.png?alt=media" alt="Salesforce New Action form on Account: Action Type Flow, Flow Open Cases, Label Log a Visit. There is no field to map the recordId of the screen flow" width="375"><figcaption><p>A Flow Quick Action: no field to map, Salesforce fills recordId.</p></figcaption></figure>

You will not find a field for the record Id here, and you do not need one. When a user clicks the action on a record, Salesforce puts that record's Id in the flow's `recordId` variable.
{% endstep %}

{% step %}

#### Save the action

Click **Save**.
{% endstep %}
{% endstepper %}

### Step 3: Add the Quick Action to the Page Layout

{% stepper %}
{% step %}

#### Open the page layout

In **Object Manager**, on the same object, click **Page Layouts** and open the layout your users have.
{% endstep %}

{% step %}

#### Add the action

In the palette, click **Mobile & Lightning Actions**, find your action by its label and drag it into the **Salesforce Mobile and Lightning Experience Actions** section. If that section shows Salesforce's predefined actions, click the link to override them first.
{% endstep %}

{% step %}

#### Save and check the record page

Click **Save** and open a record. If the button does not show, the page probably uses Dynamic Actions: open it in Lightning App Builder, select the **Highlights Panel** and add the action there instead.
{% endstep %}
{% endstepper %}

***

## Use the recordId in your flow

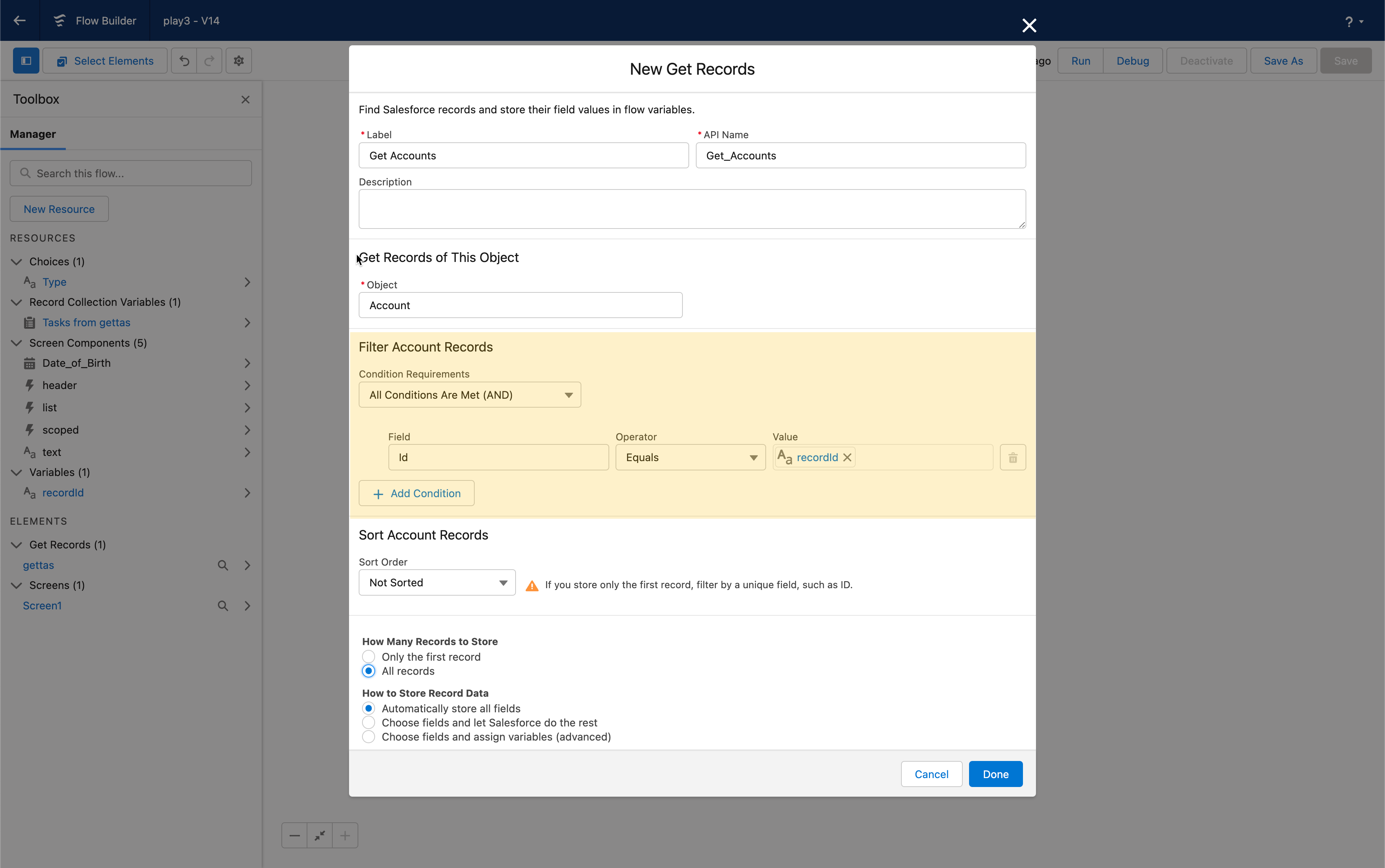

The variable holds an Id, not the record. To read the record's fields, add a **Get Records** element at the start of the flow:

1. **Object**: the object of the page, for example Account.
2. **Filter**: `Id` Equals `{!recordId}`.
3. **How Many Records to Store**: Only the first record.

Every later element can now use the record's fields, such as `{!Get_Account.Name}`. To fetch related records instead, filter on the lookup field: Contacts where `AccountId` Equals `{!recordId}`.

On an Avonni screen you often skip the Get Records: a Data Table or Map with a **Query** data source can filter on `{!recordId}` directly. See [Filter a Data Table or Map by the current record](https://docs.avonnicomponents.com/flow/tutorials/tips-and-tricks/filter-a-data-table-or-map-by-the-current-record.md).

***

## Problems

<details>

<summary>I don't see the Pass record ID into this variable checkbox</summary>

The checkbox only appears for a Text variable with **Available for input** checked. Check the variable in Flow Builder, save and activate the flow, then select the Flow component again in Lightning App Builder so it reloads the variables.

</details>

<details>

<summary>My flow is not in the list (Lightning App Builder or New Action)</summary>

Both lists show active screen flows only. Activate the flow. An autolaunched or record-triggered flow never appears there.

</details>

<details>

<summary>recordId is empty when the flow runs</summary>

Three usual causes:

* The checkbox is not checked on the Flow component, or the page you edited is not the one assigned to the user (check **Activation**).
* For a Quick Action, the variable name does not match `recordId` exactly (case counts), or the variable is not Text.
* The flow was started from Flow Builder or from the Flows list, where there is no record. See [Test a screen flow that needs a record Id](https://docs.avonnicomponents.com/flow/tutorials/tips-and-tricks/test-a-screen-flow-that-needs-a-record-id.md).

</details>

<details>

<summary>The Quick Action button does not appear on the record</summary>

The page uses Dynamic Actions, so the page layout's action section is ignored. Add the action to the **Highlights Panel** in Lightning App Builder.

</details>

***

## Go further with recordId

Once the flow receives the record Id, these pages show what to do with it.

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="files"></th><th data-hidden data-card-target data-type="content-ref"></th></tr></thead><tbody><tr><td><strong>Filter a Data Table or Map by the current record</strong></td><td>Show only the Account's open Cases or Contacts on a flow screen, with recordId in the query filter.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FoSb8luXRbb157dDEyngh%2Frecordid-cover-filter-a-data-table-or-map-by-the-current-record.png?alt=media">recordid-cover-filter-a-data-table-or-map-by-the-current-record.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/tips-and-tricks/filter-a-data-table-or-map-by-the-current-record.md">Filter a Data Table or Map by the current record in a screen flow</a></td></tr><tr><td><strong>Test a screen flow that needs a record Id</strong></td><td>Debug with a real Id before you add the flow to a page, and see why recordId is blank from Setup.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FTpQ2UklxkGXelu5MVutJ%2Frecordid-cover-test-a-screen-flow-that-needs-a-record-id.png?alt=media">recordid-cover-test-a-screen-flow-that-needs-a-record-id.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/tips-and-tricks/test-a-screen-flow-that-needs-a-record-id.md">Test a screen flow that needs a record Id</a></td></tr><tr><td><strong>Pass the record Id to a flow opened in a panel</strong></td><td>Open a second flow in a side panel from a Data Table row and hand it that row's Id.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2Ff3RjlAsk3j8jHBngoe49%2Frecordid-cover-pass-the-record-id-to-a-flow-opened-in-a-panel.png?alt=media">recordid-cover-pass-the-record-id-to-a-flow-opened-in-a-panel.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/tips-and-tricks/pass-the-record-id-to-a-flow-opened-in-a-panel.md">Pass the record Id to a flow opened in a panel</a></td></tr><tr><td><strong>Screen flow or record-triggered flow</strong></td><td>Which flow type fits the job, and why {!$Record} does not work in a screen flow.</td><td><a href="https://27923732-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1FUd4apB9YHgCEMUFbVb%2Fuploads%2FfnDpIfxNvoJoHLjY8I9u%2Frecordid-cover-screen-flow-or-record-triggered-flow.png?alt=media">recordid-cover-screen-flow-or-record-triggered-flow.png</a></td><td><a href="https://docs.avonnicomponents.com/flow/tutorials/tips-and-tricks/screen-flow-or-record-triggered-flow.md">Screen flow or record-triggered flow: recordId vs $Record</a></td></tr></tbody></table>

## FAQ

### How do I test the flow with a record Id (Debug)?

Click **Debug** in Flow Builder and type a real record Id in the `recordId` field of the Debug panel. Copy the Id from the record's URL. Step-by-step: [Test a screen flow that needs a record Id](https://docs.avonnicomponents.com/flow/tutorials/tips-and-tricks/test-a-screen-flow-that-needs-a-record-id.md).

### Why is recordId empty or null?

`recordId` is empty when nothing passes a record Id to the flow. Either the **Pass record ID into this variable** checkbox is not checked, the variable is not named exactly `recordId`, or the flow was started outside a record page. The [Problems](#problems) section lists each cause and its fix.

### Can I get the whole record instead of the Id?

Yes. The simplest way is a Get Records element with `Id` Equals `{!recordId}`, which gives you every field of the record. From a Quick Action you can also skip that element: create `recordId` as a **Record** variable (Data Type **Record**, Object set to the page's object, **Available for input**) and the action passes the whole record. See [Use the recordId in your flow](#use-the-recordid-in-your-flow).

### Does it work in the Salesforce mobile app?

Yes: the Flow component on a Lightning record page and a Quick Action added to the layout both run in the Salesforce mobile app.

To run Avonni components in a flow on an Experience Cloud site, see [Avonni Flow Screen Components in Experience Cloud](https://docs.avonnicomponents.com/flow/getting-started/using-the-avonni-flow-screen-components-in-experience-cloud.md).

### Why does {!$Record} not work in a screen flow?

`{!$Record}` is the record that started a triggered flow, and a screen flow has no triggering record. Use the `recordId` variable instead. The full comparison is in [Screen flow or record-triggered flow](https://docs.avonnicomponents.com/flow/tutorials/tips-and-tricks/screen-flow-or-record-triggered-flow.md).

***

## Related tutorials

* [Quickstart guide](https://docs.avonnicomponents.com/flow/getting-started/quickstart-guide.md): a complete flow on the Account page, built on `recordId`.


---
