# Configuring Data Grouping

Group Data Table rows under collapsible headers by stage, owner or account, and order the groups the way your team reads the pipeline.

A sales manager reviewing the pipeline wants to see deals stage by stage, in sales order, with a count on each stage. Grouping puts every row under a header for its value in one field, such as **Stage**, and each header can be collapsed.

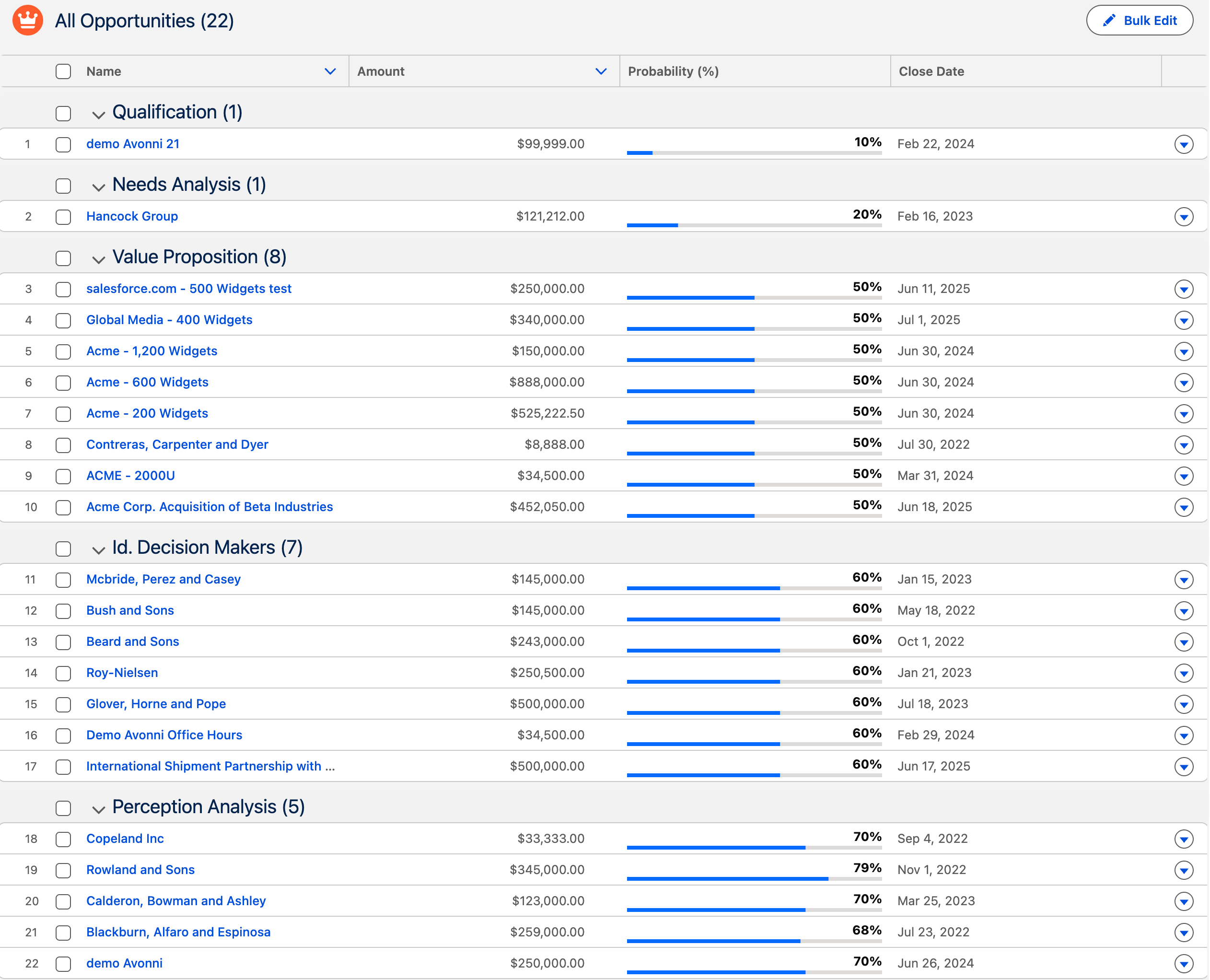

<figure><img src="https://2532358799-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FODPvvv7Cx9Z9RECLn3oV%2Fuploads%2FCJneWgTSh80lOVKyEPtO%2Fdata-table-tutorial-configuring-data-grouping-result.png?alt=media" alt="A Data Table titled Pipeline by stage with open deals grouped under collapsible headers Prospecting (1), Qualification (4), Needs Analysis (4), Value Proposition (1), Proposal/Price Quote (4) and Negotiation/Review (3), rows sorted by amount"><figcaption><p>Open deals grouped by stage, in sales order, with the number of deals on each header.</p></figcaption></figure>

## Before you start

* A Data Table with a **Query** data source. Grouping is not available with the Manual or Variable data sources. See [Data Table](https://docs.avonnicomponents.com/dynamic-components/components/data-table.md) and [Query](https://docs.avonnicomponents.com/dynamic-components/component-builder/data-sources/query.md).
* The field you group by does not have to be a column, but it must be a field Salesforce can group on. Long text area fields, for example, are not offered.

## Steps

{% stepper %}
{% step %}

### Choose the field to group by

1. Select the Data Table on the canvas.
2. In the Properties panel, open the **Data Mappings** section.
3. In **Group By**, pick the field, for example **Stage** (`StageName`).

The table regroups on the canvas right away.
{% endstep %}

{% step %}

### Put the groups in sales order

Open the **Group By** section of the Properties panel and set **Direction**:

* **Ascending Order** and **Descending Order** sort the group labels alphabetically. For stages this puts Closed Lost before Prospecting, which is rarely what a sales team wants.
* **Custom** shows **Group By Custom Order**, a list of values in the order you want the groups. On a picklist field the list starts with the picklist values, in picklist order, which for **Stage** is already the sales order.

{% hint style="warning" %}
With **Custom**, a group whose value is not in the list is not displayed. Remove `Closed Won` and `Closed Lost` from the list and the table shows open deals only. Add a value back if a group disappears unexpectedly.
{% endhint %}

<figure><img src="https://2532358799-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FODPvvv7Cx9Z9RECLn3oV%2Fuploads%2Fypwv2PMbwyRQk89sGcaE%2Fdata-table-tutorial-configuring-data-grouping-group-by-panel.png?alt=media" alt="The Group By section of the Data Table Properties panel with Display Group Rows Count on, Direction set to Custom and a Group By Custom Order list from Prospecting to Negotiation/Review" width="320"><figcaption><p>Direction set to Custom, with the closed stages removed from Group By Custom Order.</p></figcaption></figure>
{% endstep %}

{% step %}

### Decide how the groups open

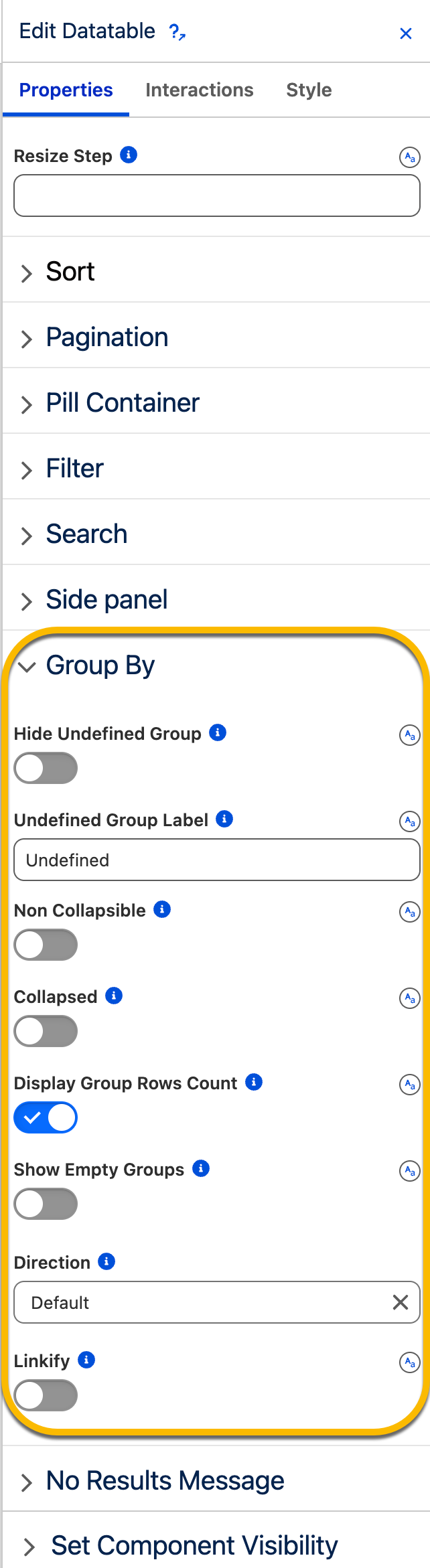

Still in the **Group By** section:

* **Display Group Rows Count** adds the number of rows next to each header, for example `Qualification (3)`.
* **Collapsed** loads the table with every group closed. Use it on long tables so the reader starts from the overview.
* **Non Collapsible** keeps every group open and removes the collapse control. **Collapsed** is hidden while it is on.
  {% endstep %}

{% step %}

### Handle blank and empty values

* Records with a blank value land in one group, labelled **Undefined** by default and always shown last. Rename it in **Undefined Group Label**, for example `No stage`.
* **Hide Undefined Group** removes that group and its rows from the table.
* **Show Empty Groups** adds a header for every picklist value, even when no record has it. It only works when the group field is a picklist.
  {% endstep %}

{% step %}

### Make lookup headers clickable (optional)

When you group by a lookup, such as **Account** (`AccountId`), turn on **Linkify** in the **Group By** section. Each header becomes a link to the account record. **Linkify** has no effect on other field types.
{% endstep %}

{% step %}

### Sort the rows inside each group

Grouping decides the buckets, sorting decides the order inside them. In **Data Mappings**, set **Sort By** to a field such as **Amount** or **Close Date**, and pick the order in **Sorted Direction**, in the **Sort** section.
{% endstep %}

{% step %}

### Save and test

Save the component and open the page that hosts it. Each stage appears as a header in the order of your custom list, with its row count, and clicking a header collapses or expands its deals.
{% endstep %}
{% endstepper %}

## Troubleshooting

<details>

<summary>A group is missing</summary>

**Direction** is set to **Custom** and the value is not in **Group By Custom Order**. Add it to the list. If the list is empty, no group is displayed at all.

</details>

<details>

<summary>The table keeps loading after the component JSON was edited by hand</summary>

When you pick a field in **Group By**, the builder also writes the binding that tells the table how many records each group holds. A component edited outside the builder can lose it. Open the component in the builder and select the **Group By** field again, then save.

</details>

<details>

<summary>The field I want is not in the Group By list</summary>

The list only shows fields Salesforce can group on. Create a formula or picklist field on the object that holds the value you want to group by, then select it.

</details>
