Icon

The Icon component displays a Lightning Design System (SLDS) icon within your Avonni Dynamic Components, with configurable size, variant styling, tooltip title, and accessibility text. It supports standard SLDS icons and may include custom icons provided by Avonni.

Overview

The Icon component is a simple visual element. It's used to:

  • Represent actions or states visually.

  • Provide visual cues for navigation.

  • Add visual interest.

  • Improve accessibility (with proper alternative text).

Icons enhance the visual appeal and usability of your components.

Example 1: Static Account Icon

  • Icon Name: standard:account

  • Icon Size: medium

  • Title: Account Icon

This displays the standard Salesforce Account icon.

Example 2: Dynamic Icon (Formula)

  • Icon Name: myStatusIcon (This is a Formula resource)

  • Icon Size: small

  • Variant: inverse

  • Title: Opportunity Status

The myStatusIcon Formula resource might contain:

IF(OpportunityStageName = 'Closed Won', 'utility:check', IF(OpportunityStageName = 'Closed Lost', 'utility:close', 'utility:help' ) )

This changes the icon based on an Opportunity's StageName.

Configuration

To configure the Icon, select it on the canvas. The Edit Icon panel opens on the right with the Properties and Style tabs. The section below mirrors the Properties tab.

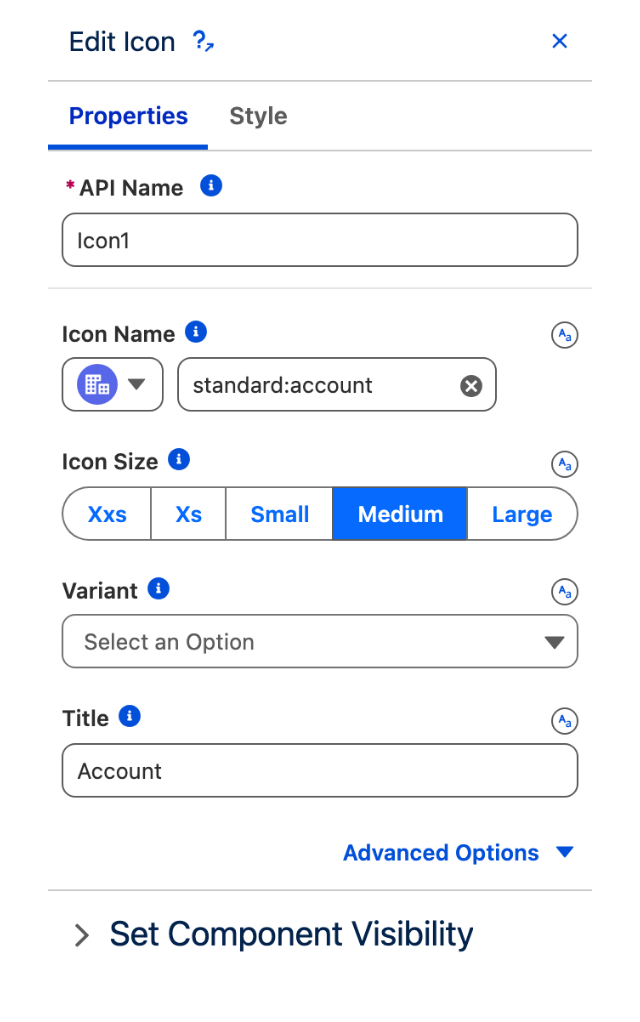

The Edit Icon panel showing the Properties tab with Icon Name, Icon Size, Variant, Title and the collapsed Advanced Options
The Properties tab: Icon Name, the Icon Size button row, Variant, Title, and the collapsed Advanced Options that holds Alternative Text.

Properties

Icon Name

The Lightning Design System name of the icon. Use:

  • SLDS Icons: Format category:name (e.g., standard:account, utility:add). Find available icons in the Salesforce Lightning Design System documentation.

  • Avonni Custom Icons: See Avonni documentation for names.

  • Dynamic Value: You can use a Variable, Constant, or Formula to change the icon based on data.

Icon Size

The size of the icon. Defaults to Medium. Requires Icon Name to be set. The panel presents the five sizes as a row of buttons labelled Xxs, Xs, Small, Medium and Large, which set the values xx-small, x-small, small, medium and large.

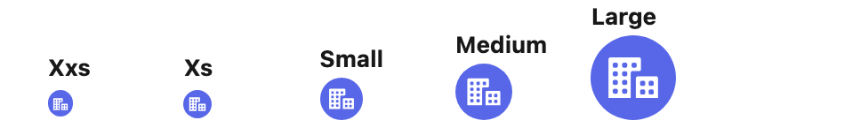

The five icon sizes side by side, each labelled with the button label shown in the panel
The five sizes, labelled as the Properties tab labels them.

Variant

The variant changes the appearance of the icon (its color). Available values are inverse, success, warning, and error. Variants apply to utility icons.

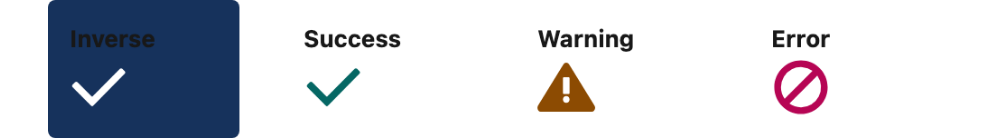

The four icon variants, with inverse shown on a dark background so the white glyph is visible
The four variants. Inverse draws the glyph in white, so it is shown here on a dark background.

Title

Title of the icon, displayed as a tooltip when hovering over the icon (in most browsers).

Alternative Text

Alternative text for the icon, used by screen readers. Found under Advanced Options at the bottom of the Properties tab. Describe the icon's purpose, not just its appearance. Example: "Create New Account," not "Plus Sign."

Important Considerations

  • Accessibility: ALWAYS provide a meaningful Alternative Text.

  • SLDS Compliance: Using SLDS icons ensures visual consistency.

  • Dynamic Icons: Use Variables/Formulas to change icons based on data.

  • Icon Availability: Check the documentation for valid icon names.

Set Component Visibility

All components support conditional visibility — see Component Visibility.

Styling

Configure the Icon's appearance from the Style tab of the Edit Icon panel.

Controls the outer spacing around the icon.

  • Top / Right / Bottom / Left: Adjust the space on each side.

Controls the inner spacing around the icon.

  • Top / Right / Bottom / Left: Adjust the space on each side.

Controls the icon container's dimensions.

  • Width / Height: Set fixed dimensions.

  • Min Width / Max Width / Min Height / Max Height: Constrain the size within bounds.

  • Overflow: Control how content that exceeds the bounds is handled.

Sets the horizontal alignment of the icon within its container.

  • Horizontal Alignment: Choose how the icon is justified.

Sets the icon colors.

  • Background: Set the icon's background color.

  • Foreground: Set the icon (glyph) color.

Customizes the icon border.

  • Radius: Round the corners of the icon.
