Add Custom Buttons

Overview

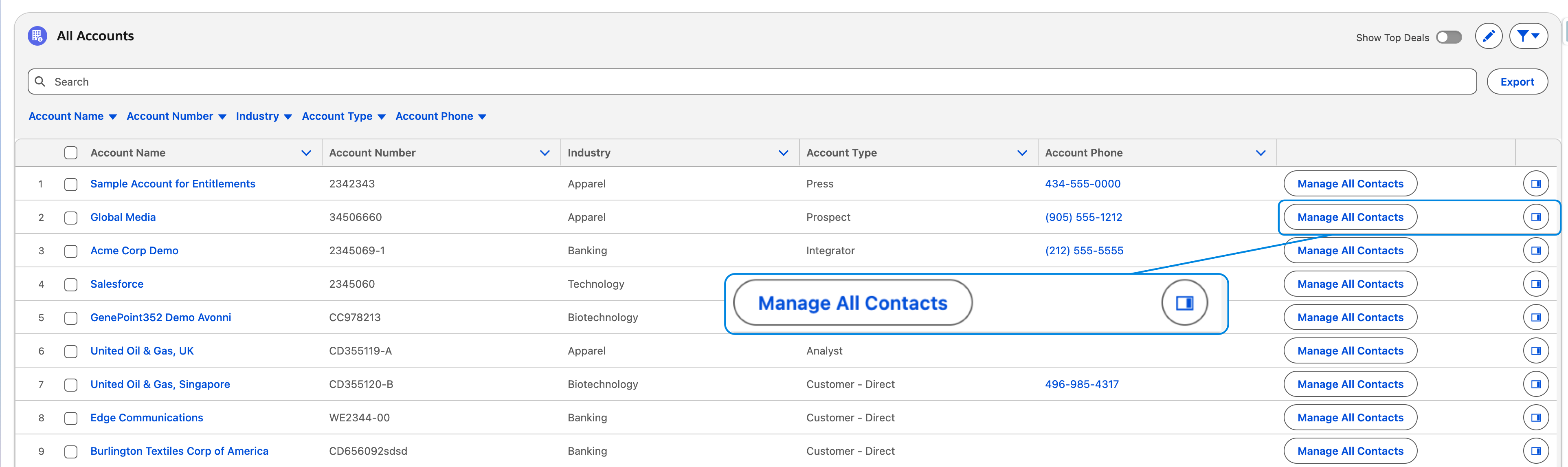

This tutorial guides you step-by-step through adding row-level action buttons to an Avonni Data Table within a Dynamic Component. You'll learn how to create buttons in each table row and trigger actions related to that specific record. Examples include buttons for Edit, Delete, View Details, or launching a custom process (such as a Screen Flow).

---

Guided Tutorial

Follow these steps to add a column of action buttons and configure what happens when users click them.

Phase 1: Setup and Configuration

1

Open the Dynamic Component Builder

• Click the App Launcher (waffle icon) in Salesforce.

• Search for and select Avonni Experiences.

• Navigate to the Dynamic Components tab.

• Create a New component or click the name of an existing component to open the builder.

2

Add or Select the Data Table

• If your canvas is empty, drag the Data Table component from the components panel onto it.

• If you already have a Data Table, simply click on it to open the properties panel on the right.

3

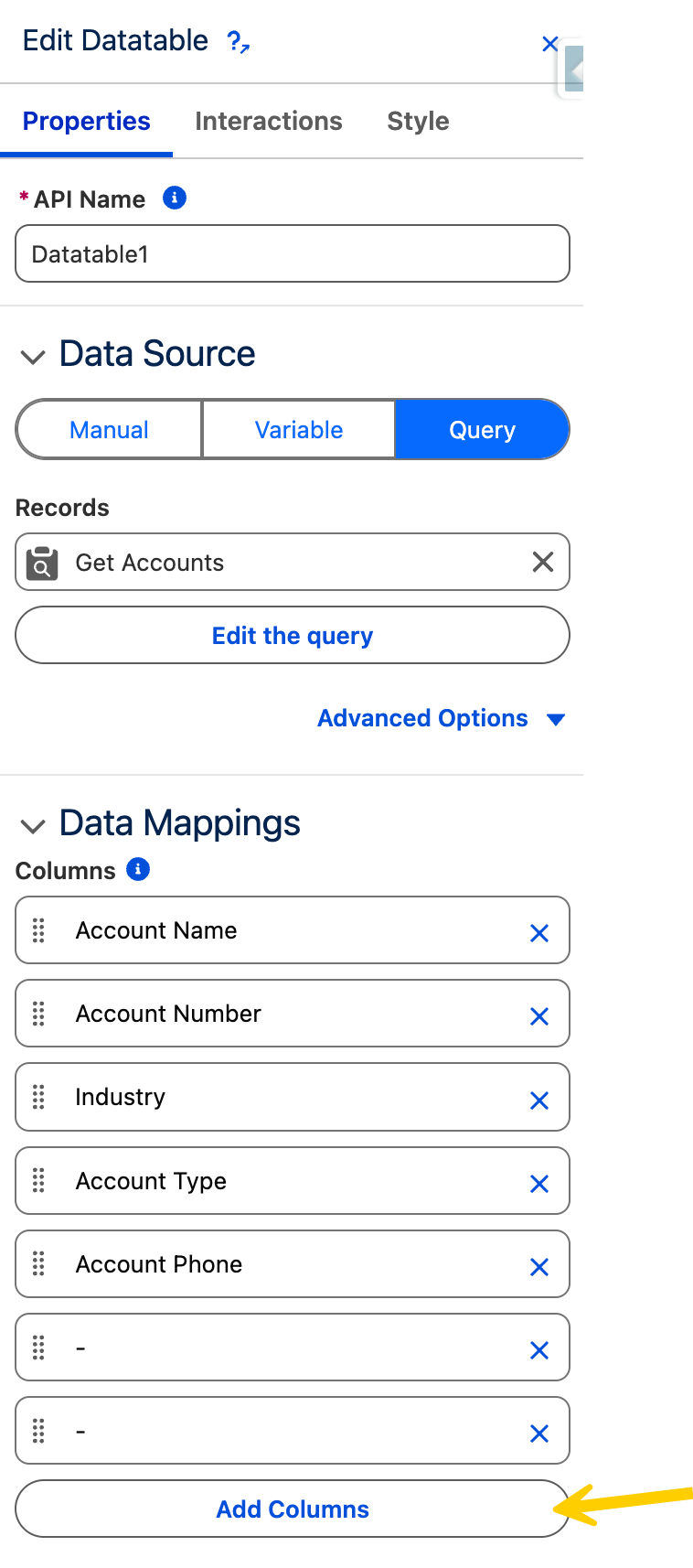

Add a New Column

• In the properties panel, locate the Data Mappings section.

• Click Add Column

4

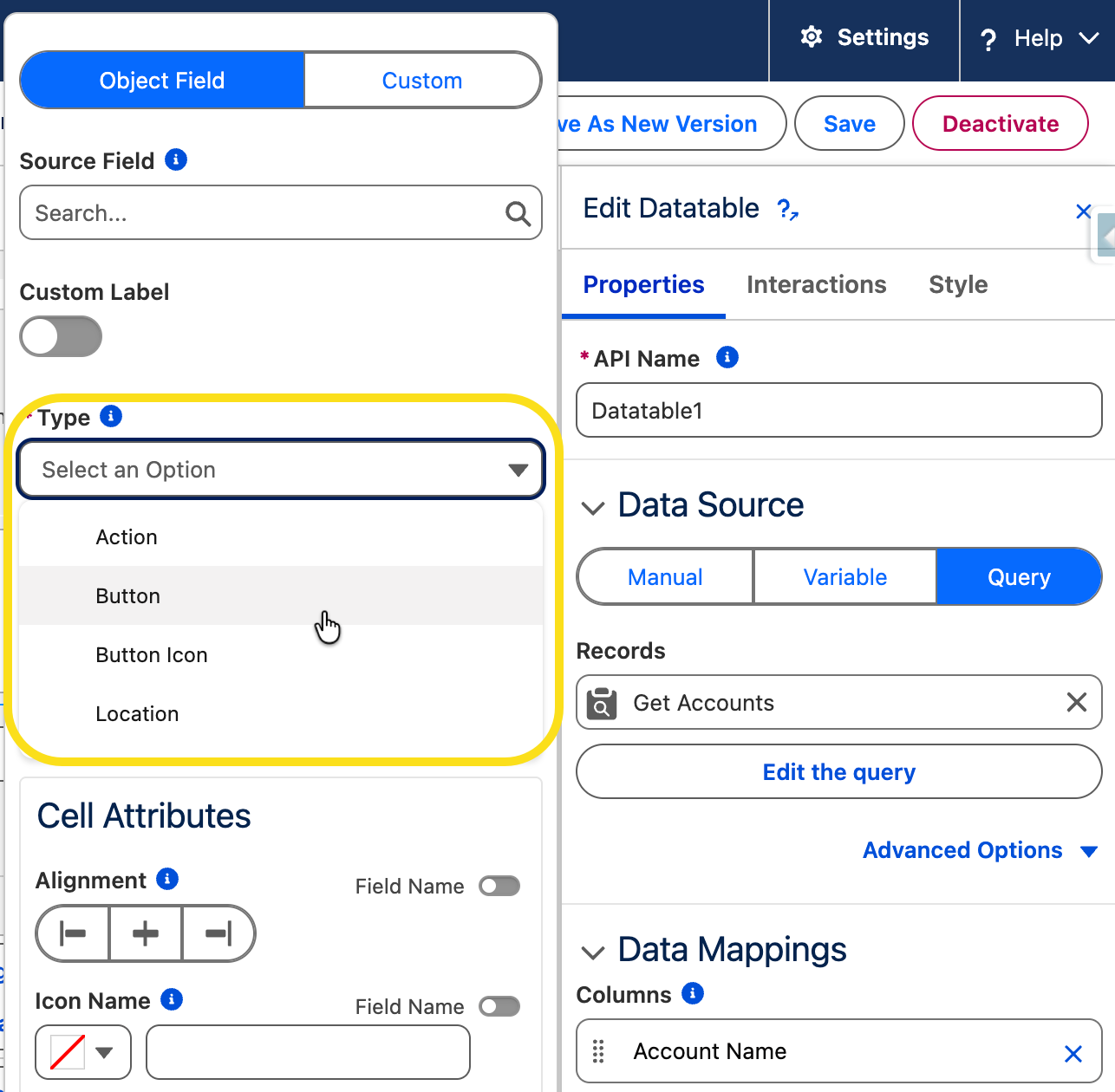

Configure Column Type

• In the column settings, change the Type to Action, Buttons or Button Icon.

• Optional: Give the column a label (e.g., "Actions") or leave it blank for an icon-only column.

5

Define the Buttons (Row Actions)

• Scroll down to the Type Attributes or Row Actions section within the column settings.

• Click Add Item for each button you want to appear (e.g., create one item named "Edit" and another named "Delete").

• Important: Assign a unique Name (ID) for each item (e.g., edit_action, delete_action). You will need these names in Phase 2.

• Optional: You can set icons (like utility:edit) or variants (like destructive) to style the buttons

Phase 2: Add Logic with Interactions

By default, the buttons you created in Phase 1 are just visual elements. To make them functional, you must create an Interaction. This tells the component: "When this specific button is clicked, perform this specific task using data from this row".

1

Create the Connection

• Switch to the Interactions Tab: At the top of the properties panel (next to the 'Properties' tab), click Interactions.

• Add a New Interaction: Click the Add Interaction button to start a new logic flow

2

Set the Trigger (The "When")

This step connects the interaction to the specific button you created earlier.

• Target: Select the unique Name (ID) you defined in Phase 1 (e.g., edit_action or view_details). This ensures the action only fires for that specific button.

• Trigger: Set this to On Row Action. This tells the system to listen for a click event happening within the data table rows.

3

Choose the Action Type (The "What")

Now, decide what should happen when the user clicks. Under the Type dropdown, you have several powerful options:

• Navigate: Best for moving users to a different page, such as a Salesforce Record Page, a Web Page, or a related list.

• Open Flow Dialog: Best for complex logic, such as launching a Screen Flow to gather user input without leaving the page.

Learn more about Interactions

4

Configure the Details (The "How")

Once you have chosen an action type, you must configure its parameters. This is the most critical step because it connects the "Generic Action" to the "Specific Record" the user clicked on.

The Core Concept: Data Mapping

Regardless of the action you choose, you will usually see a list of input fields or parameters. To make the action dynamic, you must map these parameters to the data in your table row.

• Static Values: If you type text directly into a field, every button click will send the exact same value.

• Dynamic Values: If you use the mapping icon to select a field (like Record: Id), the system will automatically pull the data from the specific row where the button was clicked.

Global Examples of Action Configuration

• For Feedback Actions (e.g., Toast/Alerts): Map the "Message" or "Title" to a field in your row (like Account Name) to show a personalized confirmation like "You clicked on [Account Name]".

• For Navigation Actions: Map the "Target ID" or "URL" to a field in your row. This ensures that if you click "View" on Row 5, you are taken to Row 5's specific page.

• For Logic/Process Actions (e.g., Updates or Flows): Map your input variables to the corresponding table columns. This passes the necessary data context (like a Price or Status) from the UI into your backend logic.

Pro Tip

If you don't see the specific data field you need in the mapping dropdown, ensure that the field is included in your Data Source or Data Mappings configuration from Phase 1.

5

Finalize

Save: Click the Save button at the bottom of the panel to apply your logic

Troubleshooting: Missing Flow Input Variables?

To see a variable in the Name dropdown menu, you must first ensure that the variable is marked as Available for input inside your Salesforce Flow Builder settings. If you do not see your variable listed, check your Flow configuration to confirm this setting is enabled

Phase 3: Test Your Component

1. Save the Component and exit the Builder.

2. View the page in Salesforce.

3. Click the button in one of the table rows and verify that the correct action (e.g., the Edit modal opens for that specific record) triggers

---
