Combobox
The Avonni Combobox component lets users pick one or more options from a dropdown list — sourced from manual entries, a query, a variable, or picklist values — with optional search, selection limits, validation messages, and custom actions inside the dropdown.
The component ships as two presets:
Combobox — single selection.
Combobox Multiselect — multiple selections, with the Is Multi Select setting turned on. This variant unlocks the selection-limit, validation-message, and keep-open settings described below.
Both presets are the same component; switching the Is Multi Select setting converts one into the other.
Overview
To start with the Avonni Combobox component, you'll first connect it to your data, map the fields that make up each option, and then customize how the dropdown looks and behaves. The sections below follow the configuration panel from top to bottom, so you can read along as you build.
Configuration

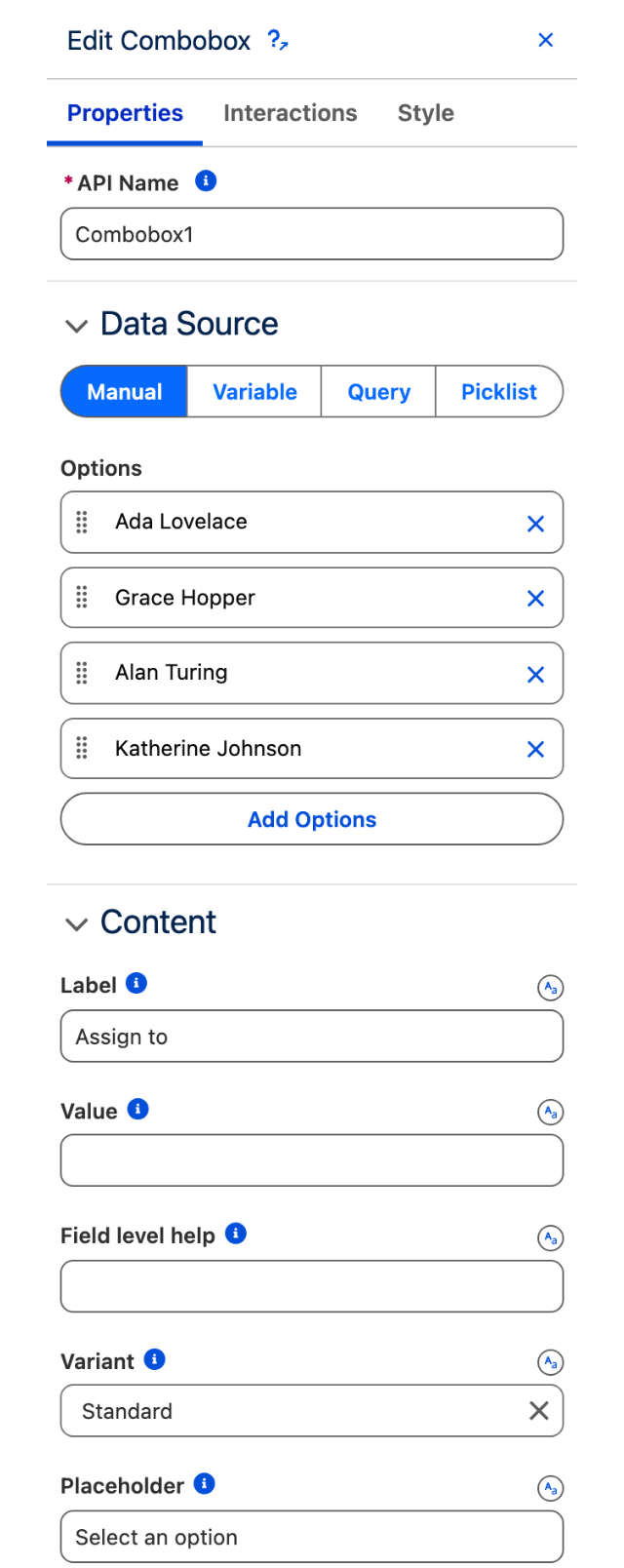

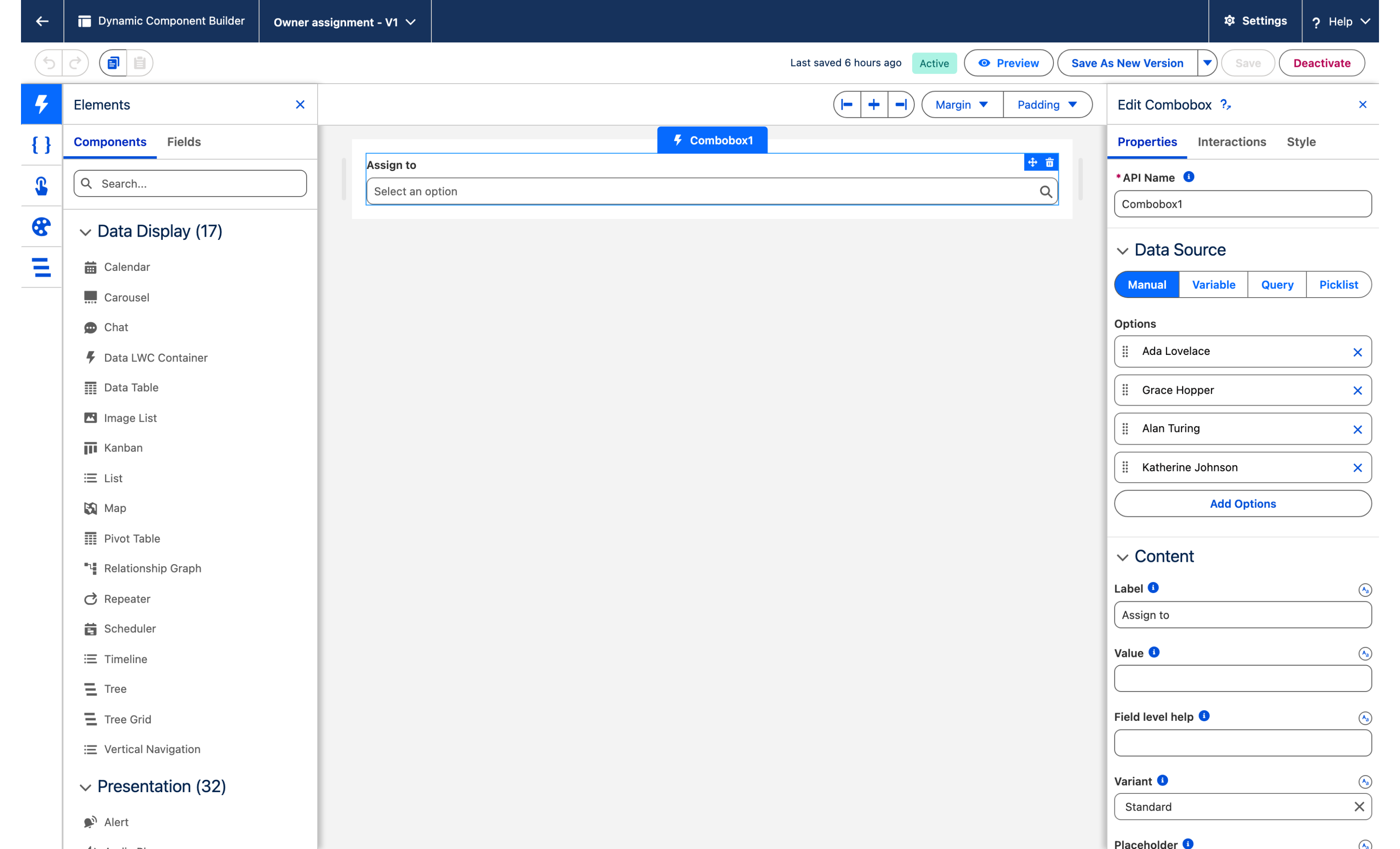

To configure the Combobox, select it on the canvas. The Edit Combobox panel opens on the right with three tabs: Properties, Interactions, and Style. The sections below mirror the Properties tab.
Data Source
Before you build your combobox, you must tell the Avonni Combobox component where to get the options it should display. You have several options, depending on the source and nature of your data:
Manual
Enter data directly into the component configuration.
Variable
This is useful for data that changes based on user interactions or other component logic.
Query
This is the most common option for displaying Salesforce records.
Data Mapping
When using a dynamic data source (Query or Variable), you'll configure the Data Mappings section to tell the component how to turn each record into a combobox option. Map the fields from your data to the parts of each option:
Label: The field containing the text shown for each option (for example,
Contact.Nameor a formula that combines fields).Secondary Text: The field containing the subtext shown below the label.
Disabled: Controls whether the option is disabled and cannot be selected.
Avatar: Display an avatar alongside the option. Set an Icon Name, Image Source, Variant (Circle or Square), Initials, and a presence indicator (Type and Position).
Value: The field that provides a unique value for each option (defaults to
Record.Id). This is the value stored when the option is selected.
Content
Label
Enter a text label for the combobox, displayed above the input. The label supports expressions, so you can build it from record or variable data.
Value
Sets the default selected option. For the Combobox Multiselect variant, separate multiple values with a semicolon, or use Value Collection instead.
Value Collection
Provides the default selected options as a collection. Requires: Is Multi Select = on.
Field Level Help
Help text describing the purpose and function of the combobox, shown next to the label.

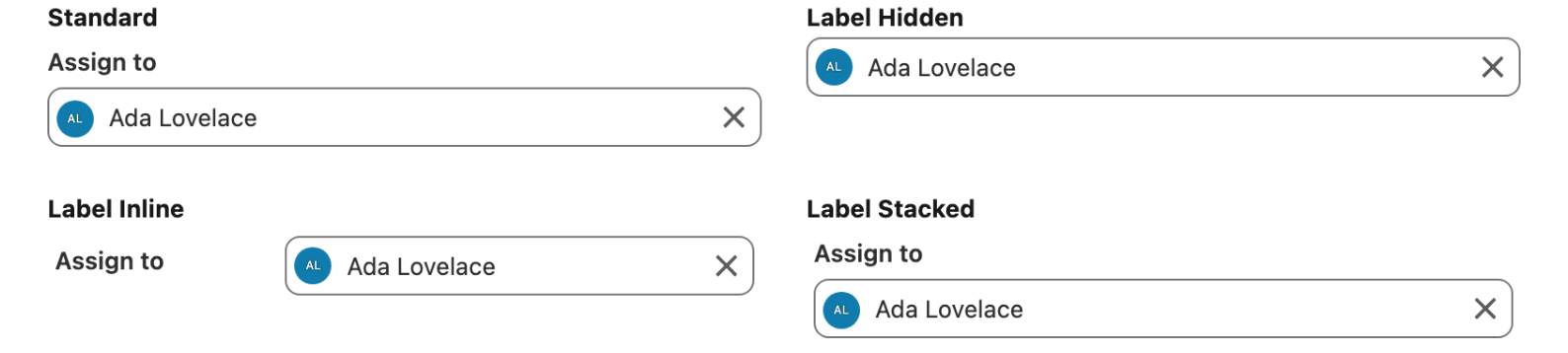

Variant
Changes the appearance of the combobox. Choose from:
Standard (default) — label above the input.
Label Hidden — hides the label for a clean, compact look.
Label Inline — places the label beside the input.
Label Stacked — stacks the label above the input.
Placeholder
Text displayed before an option is selected, prompting the user to make a selection.
Dropdown Alignment
Specifies where the dropdown list is anchored to the input field. Options: Auto (default), Left, Center, Right, Bottom Left, Bottom Center, and Bottom Right.
Dropdown Length
Sets the maximum visible height of the dropdown before it scrolls. Options: 5 Items, 7 Items (default), and 10 Items.

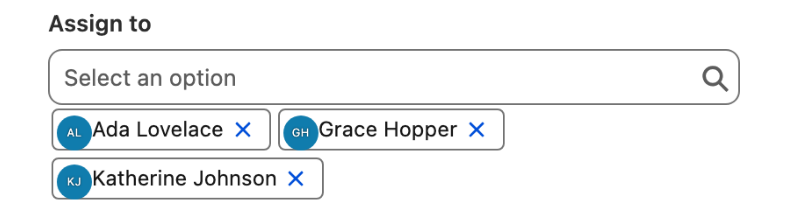

Is Multi Select
Turn this on to allow multiple selections — this is what distinguishes the Combobox Multiselect preset from the single-select Combobox. Enabling it unlocks the Maximum Selected Items, Minimum Selected Items, range validation messages, Value Collection, and Keep Open on Select settings.
Maximum / Minimum Selected Items
Set the maximum and minimum number of options a user can select. Requires: Is Multi Select = on.
Message When Range Overflow / Underflow
Custom error messages shown when the number of selections exceeds the maximum (overflow) or falls below the minimum (underflow). Requires: Is Multi Select = on.
Keep Open on Select
When on, the dropdown menu stays open after an option is selected, making it easier to pick several options in a row. Requires: Is Multi Select = on.

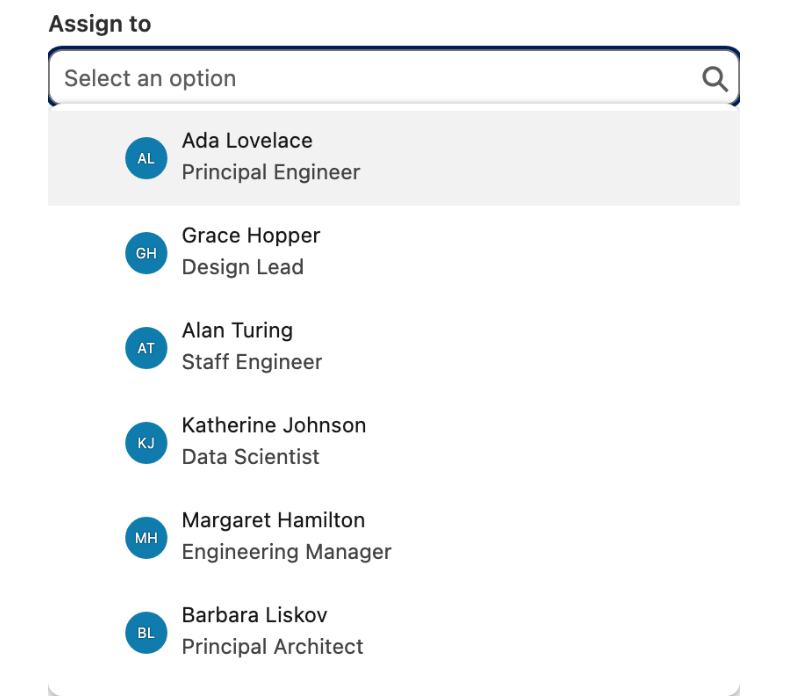

Show Search
When on, the combobox options become searchable through a search input in the dropdown.
Hide Options Until Search
When on, the options stay hidden until the user types a search term. Requires: Show Search = on.
Required
When on, at least one option must be selected.
Disabled
When on, the combobox is disabled and users cannot interact with it.
Hide Clear Icon
When on, the input's clear icon is hidden so a selected option cannot be cleared from the input.
Hide Selected Options
When on, the selected-option pills are hidden. This is mainly relevant for the Combobox Multiselect variant.

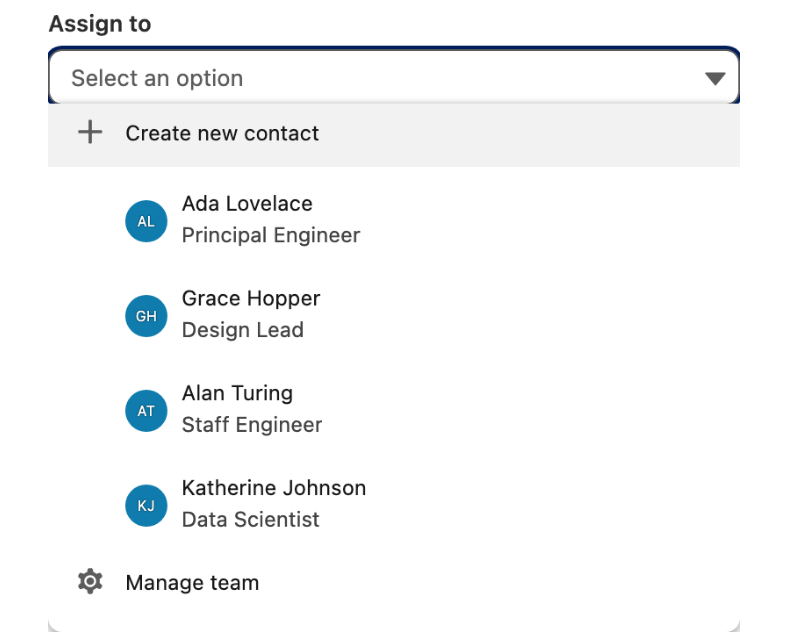

Actions
Add custom action items inside the dropdown — for example "Create new" or "Manage options" — and trigger behavior from the On Action Click interaction. Configure each action with:
Label: The text shown for the action.
Name: A unique identifier for the action (can be auto-filled from the label).
Icon Name: An optional SLDS icon shown beside the label.
Position: Whether the action appears at the Top (default) or Bottom of the dropdown.
Display on Search: When on, the action appears only while searching.
Display When No Results: When on, the action appears only when a search returns no results, and includes the search term (for example, Create "{search}"). Requires: Display on Search = on.
Fixed: When on, the action stays visible regardless of scroll position in the dropdown.
Disabled: When on, the action is disabled and cannot be clicked.
Set Component Visibility
All components support conditional visibility — see Component Visibility.
Interactions
Interactions define what happens when users interact with the Combobox. Configure them from the Interactions tab of the Edit Combobox panel.
Change
Fires whenever the user changes their selection. In the Combobox Multiselect variant, this includes adding or removing any option. Use it to navigate to a record, open a Screen Flow, store the selection in a variable, or refresh a dependent data source.
Action Click
Fires when a user clicks one of the custom actions configured in the Actions section. Use the targetName output to identify which action was clicked and branch your flow logic accordingly.
Styling
The Avonni Combobox component offers extensive styling options to help you integrate it into your Salesforce experience. Configure them from the Style tab of the Edit Combobox panel.
Controls the outer spacing around the combobox.
Top / Right / Bottom / Left: Adjust the space on each side.
Controls the inner spacing within the combobox.
Top / Right / Bottom / Left: Adjust the inner spacing on each side.
Controls the combobox's dimensions.
Width / Height: Set fixed dimensions.
Min Width / Max Width / Min Height / Max Height: Constrain the size within bounds.
Overflow / Overflow X / Overflow Y: Control how overflowing content is handled.
Styles the combobox label text.
Color: Set the label text color.
Font Size / Font Style / Font Weight: Adjust the label typography.
Customizes the input field border.
Color: Set the input border color.
Size: Control the input border width.
Style: Choose the input border line style.
Radius: Round the input corners.
Styles the background of each dropdown option.
Background Color: Set the option background color, including its hover and disabled states.
Styles the primary label text of each option.
Color: Set the option label color, including hover and disabled states.
Font Size / Font Style / Font Weight: Adjust the option label typography.
Styles the subtext shown below each option label.
Color: Set the secondary text color, including hover and disabled states.
Font Size / Font Style / Font Weight: Adjust the secondary text typography.
Styles the avatar displayed alongside each option.
Border Color / Size / Style / Radius: Customize the avatar border.
Icon Background / Foreground Color: Set the fallback icon colors, including disabled states.
Image Object Fit: Control how avatar images fit their container.
Initials Color / Font Style / Font Weight: Style the initials, including the hover color.
Styles the presence indicator on each option avatar.
Border Color / Radius: Customize the presence indicator border.
Status Background Colors: Set the background color for each presence status — Online, Busy, Focus, Offline, Blocked, and Away.
Output Variables
The Combobox exposes these output variables you can reference elsewhere on the page after the user interacts with it.
Item Selection
When a user picks an option, these variables update with the selected item's data.
Selected Item
Object
The selected option's data — its label, value, secondary text, disabled state, and avatar.
Selected Items
Object
All selected options as a collection, each with the same properties as a static data source item. Available when Is Multi Select is on.
Selected Item sObject
Record (SObject)
The full Salesforce record associated with the selected option. Requires a Query or Variable data source.
Selected Items sObject
Record Collection (SObject[])
The Salesforce records for all selected options. Requires a Query or Variable data source.
Value Comma Separated
Text (String)
The values of all selected options joined by a comma. Useful for passing multiple selections to a formula or filter.
Example: When a user selects a Contact from the combobox, use Selected Item sObject to display the Contact's details in a record-detail component on the same page.
Actions
When a user clicks one of the custom dropdown actions, this variable identifies which one was clicked.
Clicked Action Name
Text (String)
The name of the action the user clicked in the dropdown.
Example: Use Clicked Action Name in an interaction condition to branch logic between a "Create New" action and a "Manage Options" action in the same dropdown.
Others
Number of Items
Number
The total number of options currently loaded in the combobox.
Search Term
Text (String)
The text the user has typed into the search input. Updates as the user types.
