Apply Badge Color-Coding
Overview
Color-coding badges within the Data Table component is a nice way to provide immediate visual context to your records. By dynamically changing badge colors based on specific criteria—such as "Stage," "Status," or "Priority"—users can identify key information at a glance and interpret data trends without having to read through every individual row in the table.
Guided tutorial
Setting up dynamic badge colors involves a simple three-part workflow: Define, Connect, and Style. First, you will create a "logic field" in Salesforce that determines which color to use for each value. Next, you will pull that data into your component. Finally, you will map that logic to your table's badge settings so the colors update automatically based on your record's data.
Note
The guided steps in this tutorial use a specific example that dynamically sets badge background colors from the Stage field. Feel free to adjust the formula, fields, and colors to match your own objects, statuses, and business rules.
Create the "Color Logic" in Salesforce
Before configuring the table, you need an object formula field in Salesforce that specifies the color for each record.
Navigate to Setup > Object Manager and select your object (e.g., Opportunity).
Go to Fields & Relationships and click New.
Select Formula as the Data Type.
Give it a label (e.g., "Stage Color") and choose Text as the Formula Return Type.
Enter a formula that assigns specific keywords (success, error, warning, or base) to your data values:
What these colors represent
Early Stage (Prospecting, Qual.)
#90A4AE
Slate Gray (Neutral)
Middle Stage (Analysis, Prop.)
#4DB6AC
Teal (In Progress)
Late Stage (Negotiation)
#FFB74D
Orange (High Priority)
Add the Avonni Data Table Component
Drag the Avonni Data Table into your Dynamic Component. Select it, then configure its Data Source using an Avonni Query to fetch the necessary Salesforce records and fields. After setting up the query, go to the Columns section in the Properties Panel to add columns, map them to the correct Source Fields from your query, and adjust their settings.
Configure the Badge Column
Now that you have your Salesforce formula ready, you need to tell the table to use those specific Hex codes to color the badges dynamically.

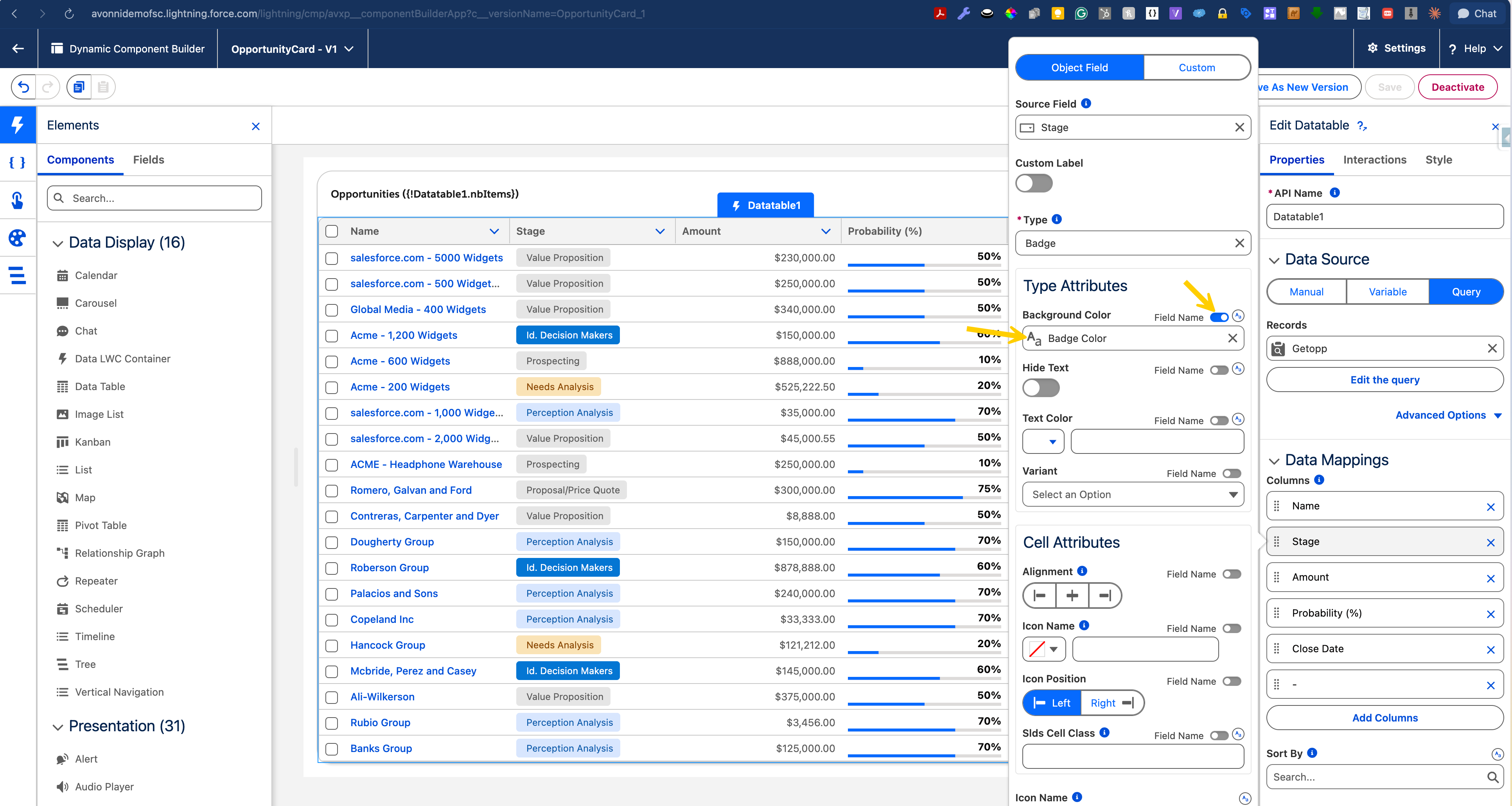

Open Data Mappings: In the Properties panel of the Data Table, navigate to the Data Mappings section.
Select the Field: Click on the column you wish to display as a badge (for example, Stage Name).
Set Type to Badge: In the Type dropdown menu for that column, select Badge.
Configure Type Attributes: Scroll down to the Type Attributes section to find the badge-specific styling options.
Map the Background Color:
Locate the Background attribute.
Toggle the Field Name option (this allows you to link the color to a data field rather than picking a single static color).
Select your Formula Field (the one containing your Hex color codes) from the list.
Why this works
By toggling the Field Name option, you are creating a dynamic link between the UI and your data. The table will look at the Hex code value for each specific record (e.g., #4BCA81) and apply it directly as the background color for that row's badge. This ensures that as a record's stage changes in Salesforce, the color in your table updates automatically without any manual styling.
View the related tutorial on conditional cell coloring
Wrapping Up

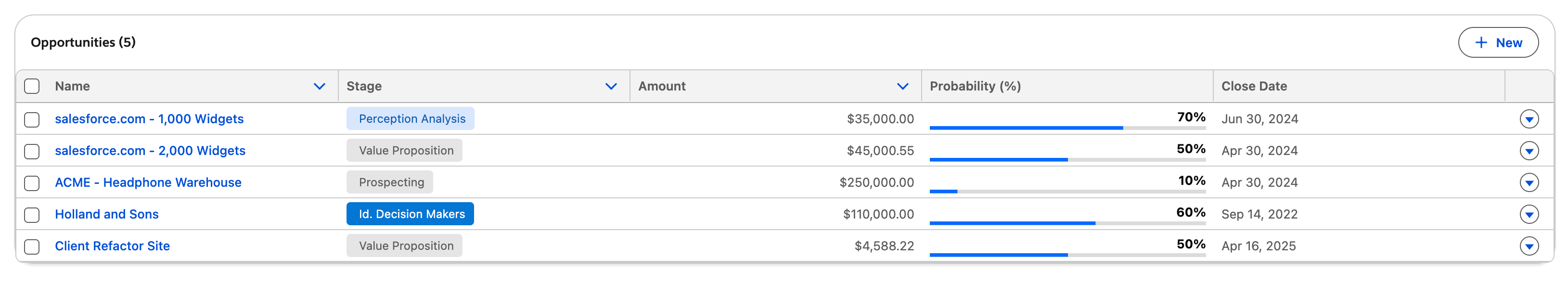

Now, your Avonni Data Table should display the StageName status with a colored badge based on the condition specified in the formula field. ‘Closed Won’ stages will show a green badge, ‘Closed Lost’ stages will show a red badge, and all other stages will show a neutral badge. This customization allows for a more visually intuitive representation of your data.
