# Columns

## Overview

The Columns component is a container that lays out other Dynamic Components in horizontal columns. It's the foundation of every responsive layout in the builder — record details next to a sidebar, KPIs in a row, side-by-side forms, or full-width hero sections that collapse on mobile.

You add the Columns component once, then configure each column individually. Columns can be **Fixed** (with a specific width) or Flexible (grow and shrink with available space), and you can override their size and order for each device — desktop, tablet, and mobile.

***

### Quick Start: Build a Responsive 3-Column Record Layout in 3 Minutes

This walkthrough builds a layout that shows three columns side by side on desktop, two on tablet, and stacks them on mobile.

{% stepper %}
{% step %}

#### **Add the Columns component to the Canvas**

* From the **Component Library** (left sidebar), drag the **Columns** component onto the Canvas.
* In the Properties Panel (right), open the columns editor.
* Click the **+** button **three times** to add three columns.

{% @arcade/embed flowId="1NxgCHxiEFhyG117UAeG" url="<https://app.arcade.software/share/1NxgCHxiEFhyG117UAeG>" %}
{% endstep %}

{% step %}

#### **Set the Layout container settings**

Select the parent **Columns** component on the Canvas, then in the Properties Panel:

* **Horizontal Alignment:** `Start`
* **Vertical Alignment:** `Top`
* **Allow Wrapping on Multiple Rows:** ✅ checked

*Why: Wrapping is what lets the third column drop to a new row on tablet, and all three stack on mobile. Without it, the columns stay on one line and shrink until they break.*
{% endstep %}

{% step %}

#### **Configure each column for desktop, tablet, and mobile**

Click on **Column 1** in the column editor. In the column popover:

* Set **Flexibility** to `Fixed`.
* Use the **Device Size** selector at the top of the popover to set sizes per device:
  * **Large** (≥ 1024px — desktop): size `4`
  * **Medium** (≥ 768px — tablet): size `6`
  * **Small** (≥ 480px — small tablet/large phone): size `12`
  * **All** (< 480px — mobile): size `12`

Repeat for **Column 2** and **Column 3** with the same values.

*Why: The grid is 12 units wide. `4 = 33%`, `6 = 50%`, `12 = 100%`. So each column takes a third on desktop, half on tablet (with the third wrapping below), and full width on mobile.*
{% endstep %}

{% step %}

#### **Drop content into each column**

* Drag any Avonni component (**Text**, **Avatar**, **Data Table**, **Card**, etc.) into each column.
* Each column is a drop zone — components stack vertically inside
  {% endstep %}

{% step %}

#### **Save and Deploy**

* Click **Save** in the top right.
* Click **Deploy** and add the component to a Lightning Page using the Lightning App Builder.

In the Lightning App Builder, drag the **Avonni Dynamic Component** onto the page, select the component you just built, and save.
{% endstep %}
{% endstepper %}

***

## Configuration

The Columns component has two levels of settings: the **Layout container** (the parent) and each **Column** (child). Select the Columns component on the Canvas to edit container settings; click an individual column to edit that column's settings.

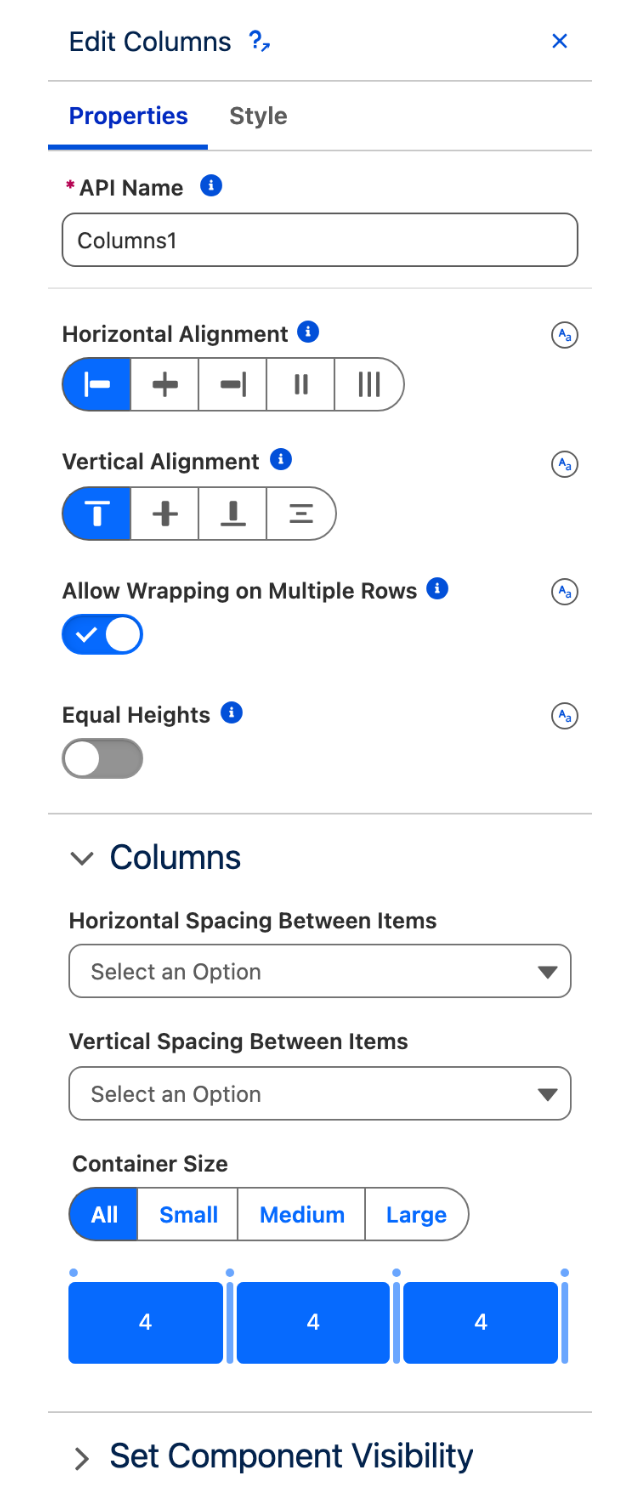

### Layout Container Settings

These settings apply to the entire row of columns. Find them in the Properties Panel after selecting the Columns component.

| Setting                             | Description                                                                                                                              | Options                                                                                               |
| ----------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------- | ----------------------------------------------------------------------------------------------------- |
| **Horizontal Alignment**            | Positions the group of columns along the horizontal axis. Only takes effect when total column widths are less than the container.        | `Start` (left), `Center`, `End` (right), `Space` (equal space between), `Spread` (equal space around) |
| **Vertical Alignment**              | Aligns columns vertically when they have different heights.                                                                              | `Top`, `Middle`, `Bottom`, `Stretch` (all columns match the tallest)                                  |
| **Allow Wrapping on Multiple Rows** | Lets columns wrap to a new row when there isn't enough horizontal space. **Required for responsive behavior.** (Default: off)            | On / Off                                                                                              |
| **Equal Heights**                   | Forces all columns to match the height of the tallest one. Useful for card grids where each card should be the same size. (Default: off) | On / Off                                                                                              |

{% hint style="warning" %}

#### **Allow Wrapping on Multiple Rows is off by default**

If your layout doesn't collapse on smaller screens, this is the first thing to check
{% endhint %}

### Column Settings

Click any individual column in the column editor to open its settings popover. The settings change based on whether the column is **Fixed** or **Flexible**.

**Flexibility Mode**

The first choice for any column is whether its width is fixed or flexible.

| Mode         | Description                                                                                                                       | When to use                                                                                               |
| ------------ | --------------------------------------------------------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------- |
| **Fixed**    | The column takes a specific size, expressed as a number from 1 to 12 (grid fraction). `12` is full width, `6` is 50%, `4` is 33%. | Any time you want predictable widths — most production layouts.                                           |
| **Flexible** | The column adjusts its width based on content and available space using flex behavior.                                            | Headers with a logo on the left and actions on the right, or a sidebar that fills whatever space is left. |

**Flexibility Options (Flexible columns only)**

When a column is set to **Flexible**, choose one of these behaviors:

| Option        | Behavior                                                                                             |
| ------------- | ---------------------------------------------------------------------------------------------------- |
| **Auto**      | The column takes the size its content needs.                                                         |
| **Grow**      | The column expands to fill any extra space in the row.                                               |
| **Shrink**    | The column shrinks if there isn't enough room for everything in the row.                             |
| **No-grow**   | The column will not expand beyond its content size, even if extra space is available.                |
| **No-shrink** | The column keeps its size even when space is tight (other columns shrink instead).                   |
| **No-flex**   | Disables flex behavior entirely — the column behaves like a fixed-width column based on its content. |

**Size (Fixed columns)**

For Fixed columns, set a **Size** value:

* A number from `1` to `12` — the column takes that fraction of the 12-column grid (e.g., `6` = half width).
* A CSS value like `300px`, `20%`, or `5rem` — the column takes that exact width.

**Device Size Override**

This is the most important setting for responsive design. The **Device Size** dropdown at the top of the column popover lets you set different sizes (and orders) for each breakpoint.

| Device     | Triggers when container is                                                              | Use case                       |
| ---------- | --------------------------------------------------------------------------------------- | ------------------------------ |
| **All**    | Less than 480px wide (and as the fallback for any device that has no specific override) | Mobile phones in portrait      |
| **Small**  | 480px and wider                                                                         | Large phones and small tablets |
| **Medium** | 768px and wider                                                                         | Tablets                        |
| **Large**  | 1024px and wider                                                                        | Desktop                        |

When you change Device Size and edit a column's size, you're only setting the size **for that breakpoint and up** until the next override. The system falls back from large → medium → small → default.

**Order**

Each column has an **Order** value (default `0`). Columns with lower order numbers appear first. Order can also be overridden per device, which lets you reorder content on mobile — for example, showing a customer photo above the details on phones, but to the right on desktop.

**Alignment Bump**

Pushes a single column to one edge of the row regardless of the row's alignment. Useful for splitting a header into "left side" and "right side" content.

| Value      | Effect                                                        |
| ---------- | ------------------------------------------------------------- |
| **Left**   | Pushes this column and everything before it to the left edge. |
| **Right**  | Pushes this column and everything after it to the right edge. |
| **Top**    | Aligns this column to the top of the row.                     |
| **Bottom** | Aligns this column to the bottom of the row.                  |

**Example:** A header with a logo (Left bump) and account menu (Right bump) — the space between them grows or shrinks with the screen.

**Padding**

Adds inner spacing around the column's content.

| Option                                | Effect                                   |
| ------------------------------------- | ---------------------------------------- |
| **Horizontal Small / Medium / Large** | Adds padding to the left and right only. |
| **Around Small / Medium / Large**     | Adds padding to all four sides.          |

***

## Mobile Configuration

Most "broken on mobile" reports trace back to one of three settings. Follow this checklist when building any layout that has to work on a phone.

### The Mobile Breakpoint

The **Default** ("All") device size in the column popover is what applies on mobile (less than 480px wide). If you skip the Default size and only set Large/Medium/Small, the column falls back through those values — but it's safer to be explicit.

### Required Settings for a Mobile-Friendly Layout

| Setting                                      | Where                                                                  | Required Value                  | Why                                                                                                                                  |
| -------------------------------------------- | ---------------------------------------------------------------------- | ------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------ |
| **Allow Wrapping on Multiple Rows**          | Layout container                                                       | ✅ On                            | Without this, columns refuse to drop to a new row and either overflow off-screen or shrink illegibly.                                |
| **Default (All) Device Size** on each column | Each column's popover, Device Size = `All`                             | `12` (full width)               | Forces each column to take 100% width on phones, stacking them vertically.                                                           |
| **Larger Device Size override**              | Each column's popover, Device Size = `Large` (and optionally `Medium`) | `4`, `6`, or another grid value | Restores the multi-column layout on tablet and desktop.                                                                              |
| **Equal Heights**                            | Layout container                                                       | Off (usually)                   | On phones with stacked columns, equal heights forces every stacked card to match the tallest — usually not what you want vertically. |

### The Standard Pattern

For 99% of responsive layouts, configure each column like this:

* **Flexibility:** `Fixed`
* **Device Size = All:** `12` (full width on mobile)
* **Device Size = Medium:** `6` (half width on tablet) — or skip if the desktop size should also apply on tablet
* **Device Size = Large:** `4` (third width on desktop) — adjust based on how many columns you want per row

### Reordering Content on Mobile

Use **Order** with device overrides when the desktop reading order doesn't make sense on a phone. For example, on a Case record:

* Desktop: sidebar (related lists) on the left, main content on the right.
* Mobile: main content first, related lists below.

Set **Order = `2`** on the sidebar column for the **All** device, and **Order = `1`** on the **Large** device. The sidebar appears second on mobile and first on desktop.

### Mobile Preview

Before deploying, use the device toggle in the builder's preview to verify each breakpoint. Resizing the browser window also triggers the breakpoint logic — the layout reflows in real time.

{% hint style="info" %}
The breakpoints are based on the **container's width**, not the device's screen width. A Columns component placed inside a narrow Lightning Page region will hit the mobile breakpoint sooner than one in a full-width region
{% endhint %}

***

## Examples

#### Header with Left Logo and Right Actions

A common header pattern: brand on the left, action buttons on the right, regardless of screen width.

{% stepper %}
{% step %}

#### **Add the Columns component with two columns**

* Drag in **Columns**, add **2 columns**.
* On the container, set **Horizontal Alignment** to `Spread`.
* Set **Vertical Alignment** to `Middle`.
  {% endstep %}

{% step %}

#### **Configure Column 1 (Logo)**

* **Flexibility:** `Flexible`
* **Flexibility option:** `Auto`
* Drop an **Image** or **Avatar** component inside.&#x20;
  {% endstep %}

{% step %}

#### **Configure Column 2 (Actions)**

* **Flexibility:** `Flexible`
* **Flexibility option:** `Auto`
* **Alignment Bump:** `Right`
* Drop a **Button Group** or **Button Menu** inside.
  {% endstep %}
  {% endstepper %}

#### KPI Row that Stacks on Mobile

Four KPI cards in a row on desktop, two-by-two on tablet, stacked on mobile.

{% stepper %}
{% step %}

#### **Add the Columns component with four columns**

* Drag in **Columns**, add **4 columns**.
* On the container, check **Allow Wrapping on Multiple Rows**.
* Set **Vertical Alignment** to `Stretch` and **Equal Heights** to ✅ on, so all four cards match the tallest.
  {% endstep %}

{% step %}

#### **Configure all four columns identically**

**Configure all four columns identically**

For each column:

* **Flexibility:** `Fixed`
* **Device Size = All:** `12` (one per row on mobile)
* **Device Size = Medium:** `6` (two per row on tablet)
* **Device Size = Large:** `3` (four per row on desktop)
* Drop a **Card** or **KPI** component inside.
  {% endstep %}
  {% endstepper %}

***

## Troubleshooting

| Problem                                                                        | Cause                                                                                                                                          | Fix                                                                                                                                                                     |
| ------------------------------------------------------------------------------ | ---------------------------------------------------------------------------------------------------------------------------------------------- | ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Columns don't stack on mobile — they stay side-by-side and overflow the screen | **Allow Wrapping on Multiple Rows** is off on the container.                                                                                   | Select the Columns component, check **Allow Wrapping on Multiple Rows** in the Properties Panel.                                                                        |
| Columns stack on mobile but stay full width on desktop too                     | The **Large** (or **Medium**) Device Size override wasn't set on the columns — only the Default size was set.                                  | Click each column, switch the Device Size to **Large**, and set a smaller size like `4` or `6`. Repeat for **Medium** if needed.                                        |
| Columns are different heights and look misaligned                              | **Vertical Alignment** is set to `Top` or `Middle`, and the columns have different content lengths.                                            | On the container, set **Vertical Alignment** to `Stretch` or enable **Equal Heights** to force matching heights.                                                        |
| Horizontal Alignment setting (Center / End / Space / Spread) does nothing      | The columns already fill the row entirely — there's no extra space to distribute.                                                              | Use **Fixed** columns with sizes that don't sum to 12 (e.g., two columns at size `4` each, leaving 4 units of empty space), or use **Flexible** columns with `No-grow`. |
| One column refuses to shrink and pushes other columns off-screen               | The column is set to **Flexible** with **No-shrink**, or it's **Fixed** with a CSS value larger than the container.                            | Change the column to `Shrink` or `Auto`, or reduce its fixed size.                                                                                                      |
| Alignment Bump doesn't push the column to the edge                             | Another column to the side has **Grow** enabled, which fills the space the bump would create.                                                  | Set the adjacent column's flexibility to `Auto` or `No-grow`.                                                                                                           |
| Padding on a column adds horizontal scrollbars                                 | The fixed column size plus padding exceeds the available row width.                                                                            | Reduce the column's size or switch from `Around` padding to `Horizontal` padding only.                                                                                  |
| Column order changes correctly in the builder but not on the deployed page     | The page's container is wider than expected, so a different breakpoint than anticipated is active.                                             | Resize the browser to verify which breakpoint applies, then set the **Order** override on the matching device size.                                                     |
| Equal Heights doesn't work — columns still differ in height                    | The container has **Allow Wrapping** on and the columns have wrapped to multiple rows. Equal Heights only matches columns within the same row. | Either disable wrapping, or accept that each row sets its own equal height independently.                                                                               |

***

## Key Considerations

* The grid is 12 units wide. Plan column sizes so they sum to 12 (or less if you want gaps): `12`, `6+6`, `4+4+4`, `3+3+3+3`, `8+4`, etc.
* Always set the **All** (Default) Device Size for every column — it's the fallback when no other override applies.
* **Allow Wrapping on Multiple Rows** is off by default. Turn it on for any layout that needs responsiveness.
* Breakpoints are based on the **container width**, not the screen width. A narrow Lightning Page region triggers the mobile breakpoint earlier than a full-width region.
* Don't nest Columns components more than two levels deep — it gets hard to predict and harder to maintain.
* For headers and toolbars, prefer **Flexible** columns with `Auto` and **Alignment Bumps**. For content grids, prefer **Fixed** columns with grid sizes per device.
* Use **Order** with device overrides to optimize the reading flow on mobile — important content first, supporting content below


---
