# Dual Listbox

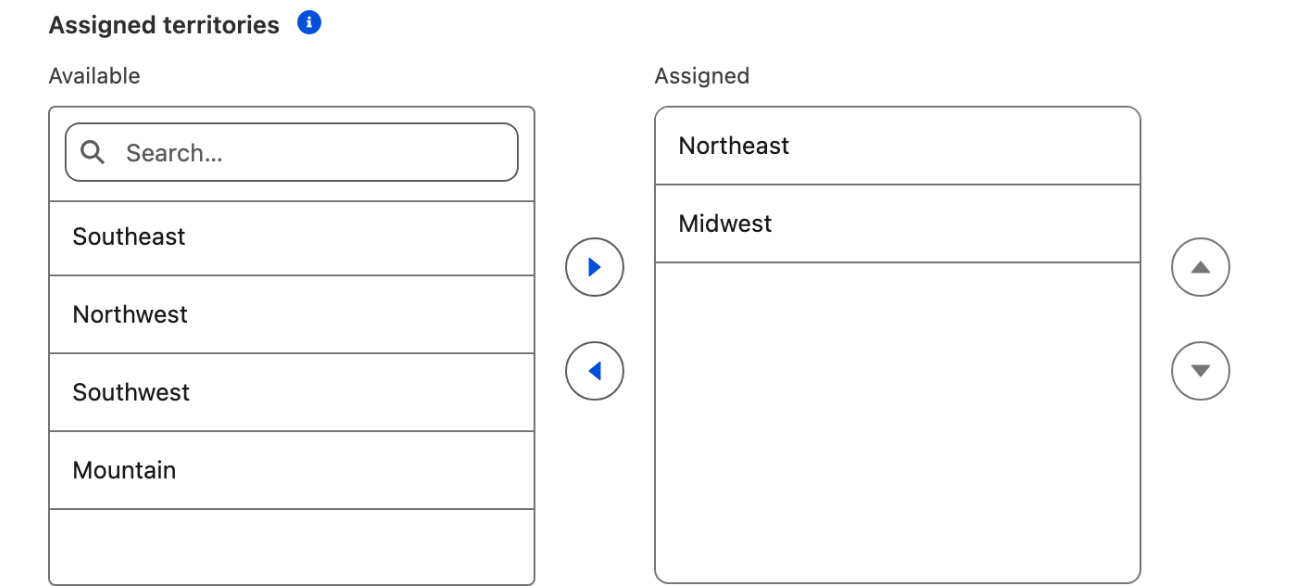

The Avonni Dual Listbox displays two side-by-side lists, allowing users to select and transfer multiple items between them using interactive controls. Use it when you need users to explicitly pick items from a source pool and build an ordered selection.

## Overview

The Dual Listbox lets users move items from a source (available) list into a selected list using add/remove buttons or drag-and-drop. It supports search filtering on the source list, reordering of selected items, required-item locking, and configurable validation rules (minimum/maximum selections).

## Configuration

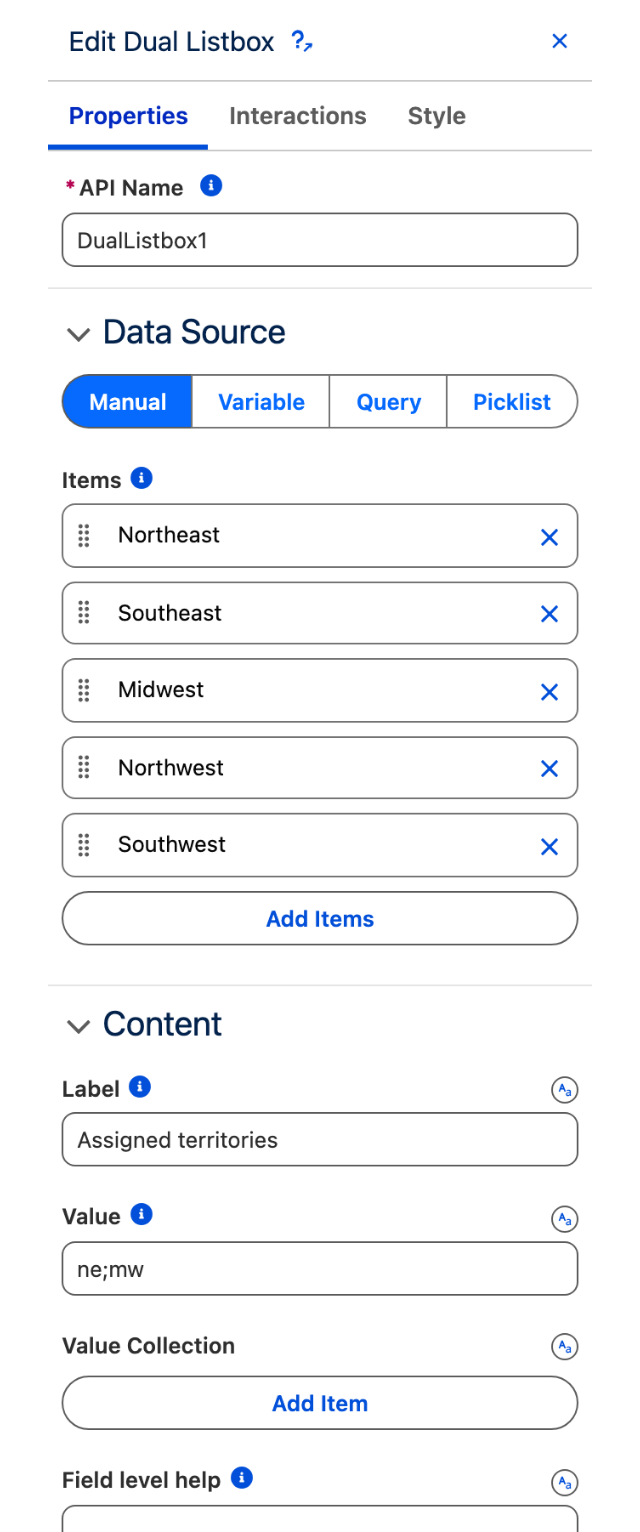

To configure the Dual Listbox, select it on the canvas. The **Edit Dual Listbox** panel opens on the right with three tabs: **Properties**, **Interactions**, and **Style**. The sections below mirror the Properties tab.

### Data Source

Before building your Dual Listbox, connect it to a data source that supplies the available options. You have several choices depending on where your data lives:

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-target data-type="content-ref"></th></tr></thead><tbody><tr><td><strong>Manual</strong></td><td>Enter data directly into the component configuration.</td><td></td></tr><tr><td><strong>Variable</strong></td><td>This is useful for data that changes based on user interactions or other component logic.</td><td></td></tr><tr><td><strong>Query</strong></td><td>This is the most common option for displaying Salesforce records.</td><td></td></tr><tr><td><strong>Picklist</strong></td><td>Retrieve data dynamically from a standard or custom picklist field within Salesforce.</td><td><a href="/pages/NMTcHeq9UuKYUmBedI8t">/pages/NMTcHeq9UuKYUmBedI8t</a></td></tr></tbody></table>

### Data Mapping

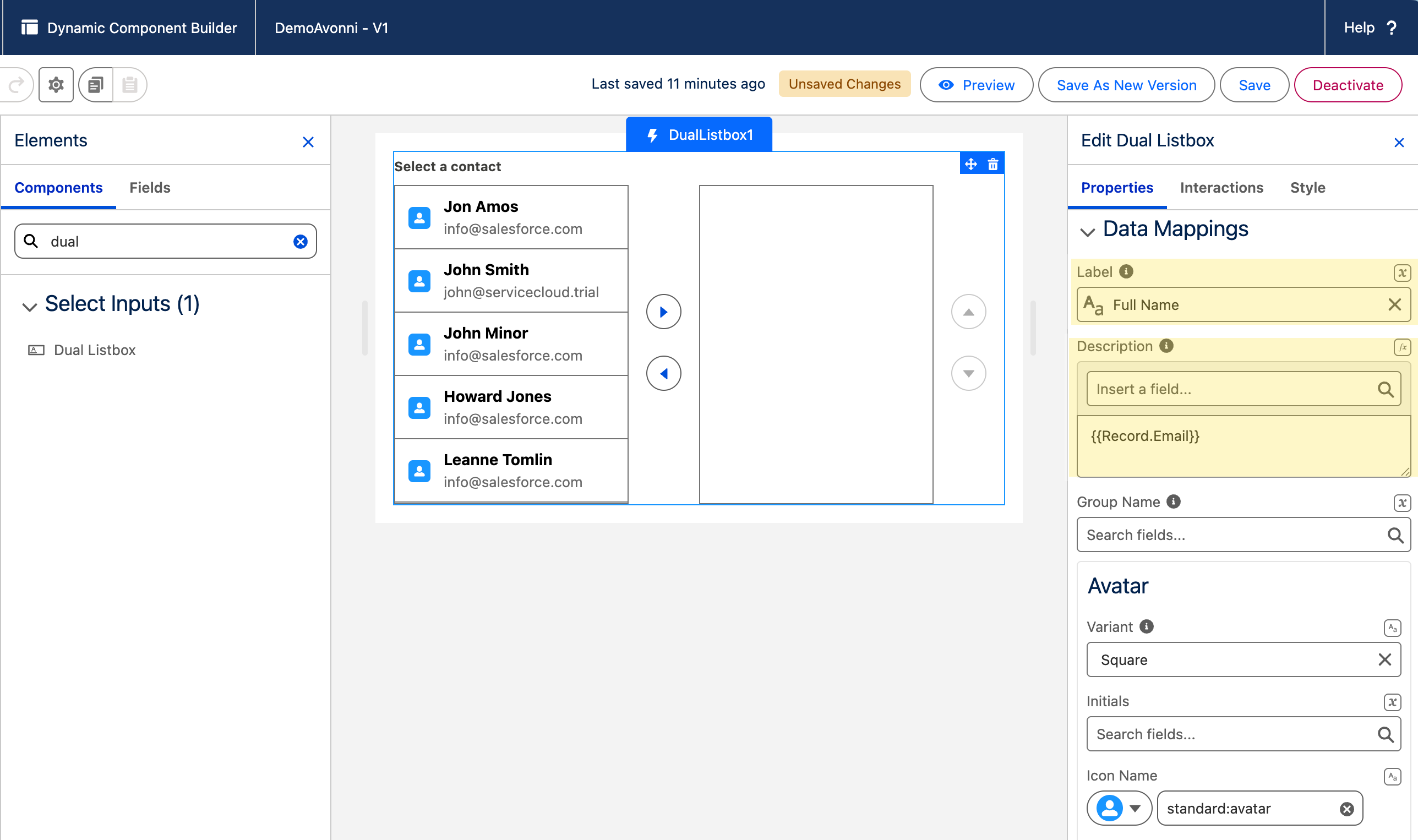

When using a Variable or Query data source, configure the **Data Mappings** section to tell the component which fields from your records to use as item labels and values.

Think of it as a translator: Data Mappings ensure the correct information from your Salesforce data appears in the listbox.

**How It Works (Contact Example)**

If you use a Query data source to retrieve `Contact` records, you need to tell the Dual Listbox which fields to display:

* **Label:** The main text shown for each item. For a Contact, a good choice is often a combination of `FirstName` and `LastName`.
* **Description/Subtitle:** Use a formula to combine multiple values and display supplementary information.

<figure><img src="/files/W25I9yCLUsTvq3S8Rjsp" alt=""><figcaption></figcaption></figure>

### Content

#### Label

The text label displayed above the entire Dual Listbox component. You can also add **Field Level Help** text — a tooltip that explains the purpose of the listbox to your users.

#### Value

The list of items pre-selected by default. Enter values as a semicolon-separated string (for example, `itemA;itemB`). Use **Value Collection** to supply pre-selected values as a collection variable instead.

#### Variant

Controls how the label is displayed relative to the listbox.

| Variant                | Description                                                          |
| ---------------------- | -------------------------------------------------------------------- |
| **Standard** (default) | Label appears above the component.                                   |
| **Label Hidden**       | Label is hidden — useful for compact layouts where context is clear. |
| **Label Inline**       | Label appears to the left of the component.                          |
| **Label Stacked**      | Label starts above the component and animates upward on interaction. |

#### Size

Defines the width of both the source and selected listboxes. Options: **Small**, **Medium**, **Large**, and **Responsive** (default). Responsive adapts to the available container width.

#### Show Search

When enabled, a search box appears above the source listbox so users can quickly filter available options. Especially useful when there are many items to choose from.

#### Draggable

When enabled, users can drag and drop items directly between the source and selected lists in addition to using the add/remove buttons.

#### Required

When enabled, the user must move at least one item to the selected list before submitting the form.

#### Disabled

When enabled, the listbox is read-only and users cannot interact with it.

#### Disable Reordering

When enabled, the Up and Down reorder buttons are hidden, so users cannot change the order of selected items.

#### Required Items

A list of item values that are locked in the selected list and cannot be removed. Populate this with values from your data source items.

#### Max Visible Items

The number of rows visible in each listbox before a vertical scrollbar appears. Default is **5**.

#### Min / Max

* **Min:** The minimum number of items required in the selected list (default: **0**).
* **Max:** The maximum number of items allowed in the selected list. Leave blank for no limit.

#### Hide Bottom Divider

When enabled, hides the bottom border line below the component.

### Buttons

Customize the appearance of the action buttons (Add, Remove, Up, Down) that sit between the two listboxes.

#### Variant

The visual style applied to all four action buttons. Default is **Border**. Options: Bare, Container, Brand, Border, Border Filled, Bare Inverse, Border Inverse.

#### Size

The size of the action buttons. Default is **Medium**. Options: XX-Small, X-Small, Small, Medium, Large. Note: XX-Small is only available for Container, Brand, Border, Border Filled, and Border Inverse variants; Large is only available for Bare and Bare Inverse variants.

#### Button Labels and Icons

Customize the tooltip text and icon for each individual action button:

* **Add Button Label / Add Button Icon**
* **Remove Button Label / Remove Button Icon**
* **Up Button Label / Up Button Icon**
* **Down Button Label / Down Button Icon**

### Labels

Customize the text labels displayed above each listbox and the placeholder shown when no items are selected.

* **Source Label:** Label shown above the available-items listbox.
* **Selected Label:** Label shown above the selected-items listbox.
* **Selected Placeholder:** Text displayed inside the selected listbox when it is empty.

### Set Component Visibility

All components support conditional visibility — see [Component Visibility](/dynamic-components/core-concepts/component-visibility.md).

## Interactions

[Interactions](/dynamic-components/component-builder/interactions.md) define what happens when users interact with the Dual Listbox. Configure them from the **Interactions** tab of the Edit Dual Listbox panel.

### Change

Fires whenever the user moves items between the source and selected lists — adding, removing, or reordering. Use the **selectedItem** and **selectedItems** output variables to access the affected item(s), or **value** and **valueCollection** to work with the selected values directly.

## Output Variables

The Dual Listbox exposes these output variables you can reference elsewhere on the page after the user interacts with it.

### Item Selection

When a user moves items between the source and selected lists, these variables update with the current selection.

| Output variable            | Type                           | What it returns                                                                                                        |
| -------------------------- | ------------------------------ | ---------------------------------------------------------------------------------------------------------------------- |
| **Selected Item**          | Object                         | The last item moved into the selected list — includes its label, value, and description.                               |
| **Selected Items**         | Object Collection              | All items currently in the selected list, each with its label, value, and description.                                 |
| **Selected Item sObject**  | Record (SObject)               | The Salesforce record associated with the last selected item. Requires a **Query** or **Variable** data source.        |
| **Selected Items sObject** | Record Collection (SObject\[]) | The Salesforce records for all items currently in the selected list. Requires a **Query** or **Variable** data source. |

> **Example:** When a user selects contacts in a Dual Listbox backed by a Contact query, use **Selected Items sObject** to pass the chosen Contact records to a downstream component or action.

### Others

| Output variable     | Type   | What it returns                                            |
| ------------------- | ------ | ---------------------------------------------------------- |
| **Number of Items** | Number | The total number of items available in the source listbox. |


---
