# Microphone

The Avonni Microphone component lets users record audio directly within a Dynamic Component page or Flow. Use it to capture voice notes, meeting summaries, audio feedback, or any other spoken input — with optional file storage as Salesforce ContentDocument objects.

## Overview

The Microphone supports single or multiple recordings, an optional real-time audio visualizer, and flexible file-saving options.

<figure><img src="https://2532358799-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FODPvvv7Cx9Z9RECLn3oV%2Fuploads%2FNnbRkNdYKWjTtlk6xIQM%2Fmicrophone-ready.png?alt=media" alt="The Microphone in its ready state"><figcaption><p>The Microphone before recording starts: the state indicator, the timer, and the <strong>Cancel</strong> and <strong>Start</strong> buttons at their default labels.</p></figcaption></figure>

<figure><img src="https://2532358799-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FODPvvv7Cx9Z9RECLn3oV%2Fuploads%2FpHbdoOf3T2M0J8wbuMh3%2Fmicrophone-recording.png?alt=media" alt="The Microphone while recording"><figcaption><p>While recording: the indicator turns red, the state label reads <strong>Recording</strong>, the timer runs, and <strong>Start</strong> is replaced by <strong>Pause</strong> and <strong>Done</strong>.</p></figcaption></figure>

Typical use cases include:

* Capture voice notes for customer interactions on Account or Contact pages.
* Record meeting summaries linked to project records.
* Collect audio feedback in support cases or surveys.
* Log verbal instructions for field service tasks.
* Store training session recordings linked to custom objects.

### Supported platforms and limitations

This information applies to the **Avonni Dynamic Components Microphone** component release documented on August 18, 2026. It is not an evergreen compatibility guarantee.

| Context                                                                                 | Recording support                                                                                                                                         |
| --------------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Salesforce Lightning Experience on a supported desktop browser                          | Supported when the requirements below are met.                                                                                                            |
| Salesforce mobile app                                                                   | Supported for Dynamic Components. The device and embedded webview must meet the media-capture requirements below. Test your mobile deployment thoroughly. |
| Field Service Mobile                                                                    | Not validated or supported for the Microphone component in this release.                                                                                  |
| Other embedded hosts, unsupported browsers, or runtimes without microphone-capture APIs | Unsupported for recording.                                                                                                                                |

#### Requirements

The recorder uses the browser media-capture API, `getUserMedia`. Recording requires:

* A device microphone.
* A secure HTTPS context.
* Microphone access granted by the user and the device or browser.

Organization, browser, operating system, and device-management policies can block the permission prompt or microphone access.

#### When recording cannot start

Recording cannot start when microphone permission is denied, no input device exists, the runtime lacks `getUserMedia`, or the page is not secure.

Grant or restore microphone permission, then retry in a supported host and browser. The component does not provide a recording fallback when media capture is unavailable.

## Configuration

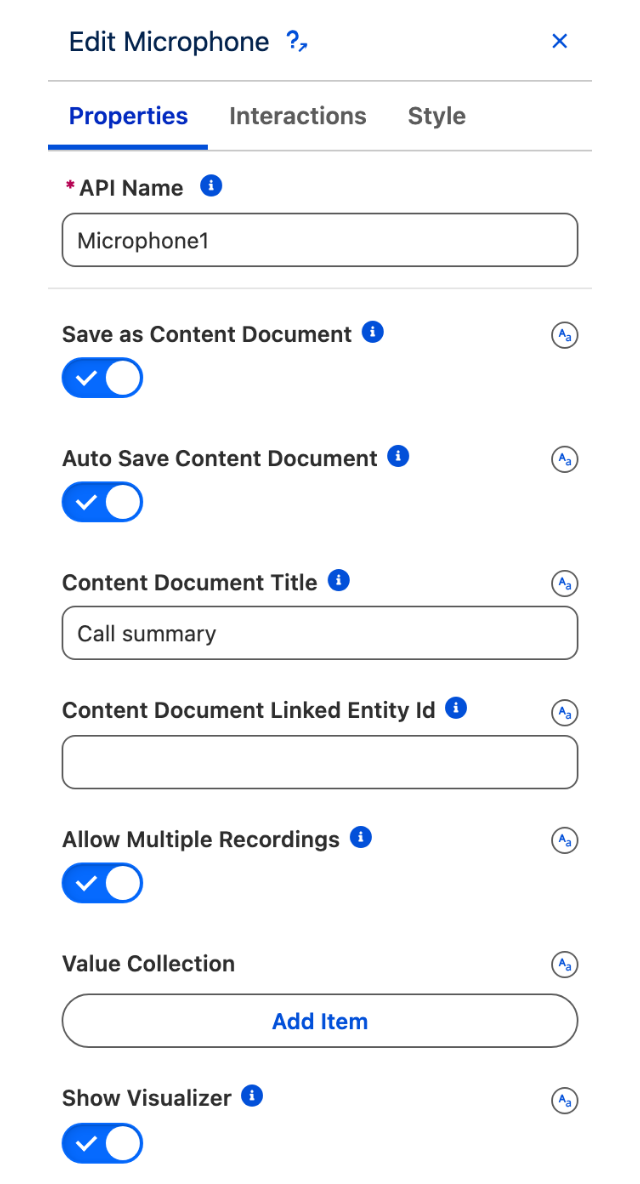

To configure the Microphone, select it on the canvas. The **Edit Microphone** panel opens on the right with three tabs: **Properties**, **Interactions**, and **Style**. The sections below mirror the Properties tab.

<figure><img src="https://2532358799-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FODPvvv7Cx9Z9RECLn3oV%2Fuploads%2FRcGYYecWwMHohOsxw4gF%2Fmicrophone-builder-properties.png?alt=media" alt="The Properties tab of the Edit Microphone panel" width="320"><figcaption><p>The Properties tab with <strong>Save as Content Document</strong> and <strong>Allow Multiple Recordings</strong> both on, so their dependent settings are showing.</p></figcaption></figure>

### Properties

#### Save as Content Document

Enable **Save as Content Document** to allow recordings to be saved as ContentDocument files in Salesforce. When this is on, three additional settings become available:

* **Auto Save Content Document** — When enabled, recordings are automatically saved as a ContentDocument without requiring the user to click a save button. Requires: **Save as Content Document** enabled.
* **Content Document Title** — The title assigned to the saved file. Defaults to `Untitled`. Requires: **Save as Content Document** enabled.
* **Content Document Linked Entity Id** — The record ID to link the saved file to (for example, a Case or Account ID). Requires: **Save as Content Document** enabled.

#### Allow Multiple Recordings

Enable **Allow Multiple Recordings** to let users record several audio clips in a single session instead of just one.

* **Value** — Stores the recorded audio data for a single recording. Available when **Allow Multiple Recordings** is off.
* **Value Collection** — Stores the collection of recorded audio data when multiple recordings are enabled. Available when **Allow Multiple Recordings** is on.

#### Show Visualizer

Enable **Show Visualizer** to display a real-time audio waveform while the user is recording or playing back audio. Disabled by default.

<figure><img src="https://2532358799-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FODPvvv7Cx9Z9RECLn3oV%2Fuploads%2F8eMfITgvI6P7Qs9V1B9T%2Fmicrophone-visualizer.png?alt=media" alt="The Microphone with Show Visualizer off and on"><figcaption><p>Where the visualizer sits, between the state label and the timer.</p></figcaption></figure>

### Labels

The **Labels** section (collapsed by default) lets you customize the text of every UI element in the Microphone. All labels have sensible defaults.

| Setting                   | Default     | Description                                 |
| ------------------------- | ----------- | ------------------------------------------- |
| **Ready Label**           | `Ready`     | Label for the ready state indicator.        |
| **Recording Label**       | `Recording` | Label shown while recording is in progress. |
| **Paused Button Label**   | `Paused`    | Label for the paused state indicator.       |
| **Cancel Button Label**   | `Cancel`    | Label for the cancel button.                |
| **Start Button Label**    | `Start`     | Label for the start recording button.       |
| **Done Button Label**     | `Done`      | Label for the done button.                  |
| **Save Button Label**     | `Save`      | Label for the save button.                  |
| **Delete Button Label**   | `Delete`    | Label for the delete button.                |
| **New Button Label**      | `New`       | Label for the new recording button.         |
| **Rename Button Label**   | `Rename`    | Label for the rename button.                |
| **Pause Button Label**    | `Pause`     | Label for the pause button.                 |
| **Resume Button Label**   | `Resume`    | Label for the resume button.                |
| **Download Button Label** | `Download`  | Label for the download button.              |

### Set Component Visibility

All components support conditional visibility — see [Component Visibility](/dynamic-components/core-concepts/component-visibility.md).

## Interactions

[Interactions](/dynamic-components/component-builder/interactions.md) define what happens when users interact with the Microphone. Configure them from the **Interactions** tab of the Edit Microphone panel.

### Save As Button Click

Fires when the user clicks the save button on a recording. Use this to react after a recording is saved — for example, show a confirmation toast, navigate to another page, or update a record using the recorded audio value.

## Styling

Configure the Microphone's appearance from the **Style** tab of the Edit Microphone panel.

{% tabs %}
{% tab title="Margin" %}
Controls the *outer* spacing around the component.

* **Top / Right / Bottom / Left:** Adjust the space on each side.
  {% endtab %}

{% tab title="Padding" %}
Controls the *inner* spacing between the component's content and its border.

* **Top / Right / Bottom / Left:** Adjust the inner spacing on each side.
  {% endtab %}

{% tab title="Size" %}
Controls the component's dimensions.

* **Width / Height:** Set fixed dimensions.
* **Min Width / Max Width / Min Height / Max Height:** Constrain the size within bounds.
* **Overflow:** Control how content that exceeds the bounds is handled.
  {% endtab %}

{% tab title="Border" %}
Customizes the border surrounding the component.

* **Color / Size / Style / Radius:** Set the border color, thickness, style, and corner rounding.
  {% endtab %}

{% tab title="Record Icon" %}
Styles the record indicator.

* **Record Icon Color:** Set the color of the record icon.
  {% endtab %}

{% tab title="Buttons" %}
Styles the recording control buttons — Start, Pause, Resume, Cancel, Done, Save, New, Rename, and Download. Each exposes the same set of hooks.

* **Background Color / Text Color / Border Color:** Set the colors for the default, active, and hover states.
* **Border Size / Border Radius:** Control the button border.
* **Block Start / Block End:** Set the vertical spacing around the button.
  {% endtab %}

{% tab title="Status Labels" %}
Styles the state and timer labels — Ready, Paused, Recording, and Timer. Each exposes the same set of hooks.

* **Color / Font Size / Font Weight / Font Family:** Set the label color and typography.
  {% endtab %}

{% tab title="Visualizer" %}
Styles the audio waveform visualizer.

* **Color:** Set the visualizer color.
  {% endtab %}

{% tab title="Multiple Recordings" %}
Styles the multiple-recordings list (when **Allow Multiple Recordings** is enabled).

* **Border Bottom:** Color / Size / Style of the divider below each recording.
* **Label:** Color / Font Size / Font Weight / Font Family of each recording label.
* **Button Menu:** Background / Icon / Border colors (default, active, hover) plus Border Size / Radius of the per-recording menu.
* **Play Button Icon / Stop Button Icon:** the same color and border hooks for the play and stop controls.
  {% endtab %}
  {% endtabs %}


---
