# Formula

Formula resources in Avonni Dynamic Components allow you to perform calculations and derive values dynamically *within* your component. Unlike Constants (which are fixed), Formula resources re-evaluate whenever their referenced values change, providing a powerful way to create dynamic and responsive behavior.

***

## 1. Overview

A Formula resource is essentially a named expression that calculates a value. This value can then be used in other parts of your component, such as:

* **Component Properties:** Set the value of a component property (e.g., a label, a visibility condition, a filter value).
* **Interactions:** Pass calculated values to interactions (e.g., as input variables to a Flow).
* **Other Formulas:** Use the result of one Formula resource within another Formula resource (creating chained calculations).
* **Filters**: Directly in Data Filters

***

## 2. Creating a Formula Resource

To create a Formula resource in your Avonni Dynamic Component:

1. **Open the Resources Panel:** Click the **Resources** button.
2. **Create a New Resource:** Click the button to create a new resource ("+" icon or "New Resource").
3. **Select "Formula":** Choose "Formula" as the resource type.
4. **Configure the Formula:**
   * **API Name:** Enter a unique and descriptive identifier for the formula (e.g., `TotalPrice`, `IsDiscountApplicable`, `FormattedOrderDate`). This is how you'll reference the formula.
   * **Description (Optional):** Briefly describe the formula's purpose.
   * **Data Type:** Select the data type of the *result* of the formula:
     * **Boolean:** The formula will return `true` or `false`.
     * **Date:** The formula will return a date value.
     * **Date/Time:** The formula will return a date and time value.
     * **Number:** The formula will return a numeric value.
     * **Record:** The formula will return a Salesforce record (you'd typically construct a record ID dynamically).
     * **Text:** The formula will return a string of text.
   * **Formula:** Enter the formula expression itself. This is where you define the calculation. You can use:
     * **Resources:** Reference other resources (variables, constants, component attributes) from the resources menu.
     * **Operators:** Use standard mathematical operators (`+`, `-`, `*`, `/`), comparison operators (`=`, `<`, `>`, `<=`, `>=`, `!=`), and logical operators (`AND`, `OR`, `NOT`).
     * **Functions:** Use built-in functions provided by Avonni.&#x20;
     * **Literals**: Directly add number, text, or date.

***

## 3. Using a Formula Resource

Once you've created a Formula resource, you can reference it throughout your Dynamic Component, just like any other resource:

1. **Locate the Property:** Find the property where you want to use the formula's result (e.g., a component's `label`, a filter's `value`, an interaction's input variable).

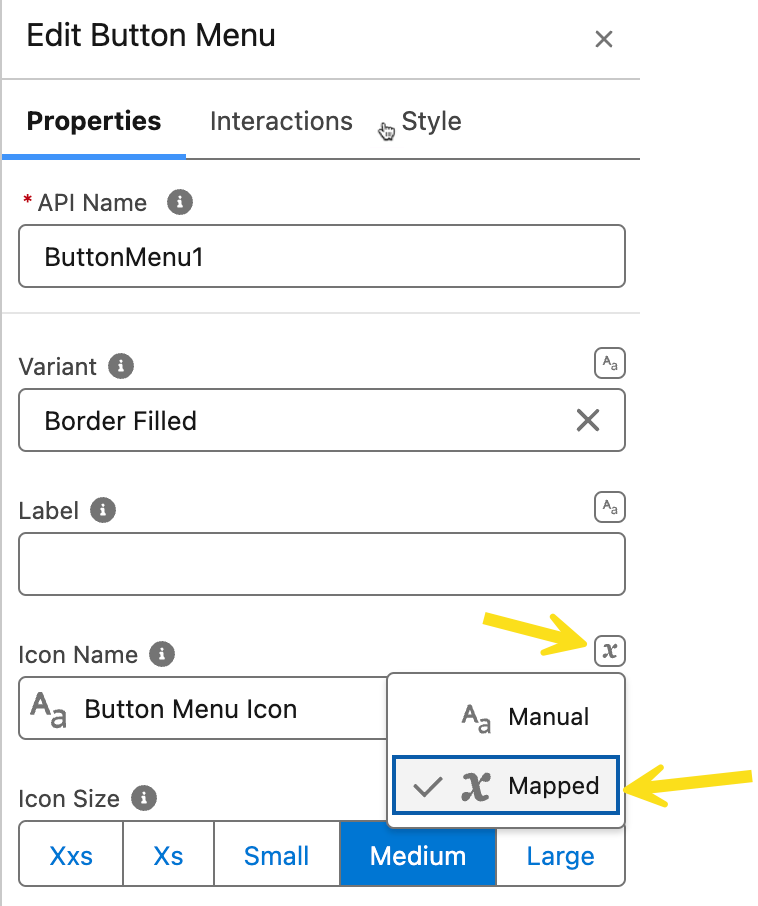

2. Click the **resource selector** icon next to the property and choose your Formula resource from the list.

<figure><img src="/files/3PXT9X2jtQ2ZczqxJu1E" alt="" width="375"><figcaption></figcaption></figure>

***

## 4. Example Formulas

* **5.1 Total Price Calculation:**
  * **Data Type:** `Number`
  * **Formula:** `{!Quantity} * {!UnitPrice}` (Assumes `Quantity` and `UnitPrice` are Number variables or component attributes)
  * **Use Case:** Display the total price in a Text component, or use it in a filter condition.
* **5.2 Discount Eligibility Check:**
  * **Data Type:** `Boolean`
  * **Formula:** `{!Quantity} > 10` (Assumes `Quantity` is a Number variable)
  * **Use Case:** Control the visibility of a "Discount Applied" message, or enable/disable a "Discount" button.
* **5.3 Formatted Date:**
  * **Data Type:** `Text`
  * **Formula:** `TEXT({!OrderDate}, 'MMMM dd, yyyy')` (Assumes `OrderDate` is a Date variable)
    * **Note:** You may need date/time formatting function to format the date.
  * **Use Case:** Display a date in a specific format in a Text component or label.
* **5.4 Dynamic Button Menu Icon (Your Example):**
  * **Data Type:** `Text`
  * **Formula:**

    ```
    IF(@ButtonMenu1.value == 'table', 'utility:table',
      IF(@ButtonMenu1.value == 'kanban', 'utility:kanban',
        IF(@ButtonMenu1.value == 'grid', 'utility:tile_card_list',
          IF(@ButtonMenu1.value == 'groupby', 'utility:summarydetail',
            IF(@ButtonMenu1.value == 'calendar', 'utility:shift_pattern',
              IF(@ButtonMenu1.value == 'map', 'utility:location',
                'utility:table'  // Default icon
              )
            )
          )
        )
      )
    )
    ```

    * **Use Case**: In this case, the `ButtonMenu1` is the name of a Button Menu Component.
  * **Explanation:** This formula dynamically sets the *icon name* of a component (likely a Button or Button Menu) based on the selected value of a Button Menu component named `ButtonMenu1`. It uses nested `IF()` statements to check the selected value and return the appropriate icon name. This is a powerful example of using a formula to control a component's *appearance* based on user interaction.
* **5.5 Conditional Visibility based on Record Data:**
  * **Data Type:** `Boolean`
  * **Formula:** `{!Account.Type} = 'Customer'` (Assumes you have a Record variable named `Account` populated via an "On Load" interaction)
  * **Use Case:** Show a specific section of your component *only* if the current Account's `Type` field is equal to 'Customer'.
* **5.6 Dynamic URL**:
  * **Data Type:** `Text`
  * **Formula:** `'https://www.avonnicomponents.com/example?id=' & {!recordId}`
  * **Use Case**: Create a URL link to another page.
* **5.7 Concatenate fields**:
  * **Data Type:** `Text`
  * **Formula:** `{!FirstName} & " " & {!LastName}`
  * **Use Case:** Create a Full Name value

***

## 5. Important Considerations

* **Data Type Compatibility:** Ensure the data types of the resources and operators you use in your formula are compatible.
* **Error Handling:** Consider how your formula should behave if any referenced resources are null or have unexpected values. Use functions like `IF()` and `ISBLANK()` to handle these cases gracefully.
* **Performance:** While formulas are generally efficient, very complex ones with many nested functions or references to large datasets could impact performance.
* **Referencing other components**: You can reference components using the `@` symbol.

## **In Summary**

Formula resources provide a powerful and flexible way to perform calculations and derive dynamic values within your Avonni Dynamic Components. They promote reusability, readability, and maintainability, making your components more dynamic and responsive


---
